Magic Timebomb (Day 14)

The flickering candlelight casts dancing shadows across the cracked concrete walls of your makeshift laboratory. Outside, the wasteland stretches endlessly under a blood-red sky, but here in this forgotten bunker, you've discovered something extraordinary. Among the scattered remnants of the old world, you've found the components to build what the ancients called a "scheduled trigger system" — a device that could activate other systems at precise moments in time.

Your fingers trace the edges of the mysterious RTC module, its crystal oscillator still pulsing with mechanical precision despite the decades of chaos above. This small chip holds the power to track time itself, even when the world has forgotten how to count the hours. Combined with your HERO Board and the salvaged LCD display, you can create something the survivors call a "Magic Timebomb" — not an explosive device, but something far more valuable: a system that can trigger events at exactly the right moment.

In this harsh new reality, timing is everything. Water pumps that activate during the coolest part of the day. Warning lights that flash when radiation levels are highest. Communication beacons that broadcast at predetermined intervals when other survivors might be listening. The ability to automate these critical functions could mean the difference between thriving and merely surviving.

You've seen the old world's clocks, their faces cracked and hands frozen at the moment when everything changed. But this RTC module pulses with life, counting seconds with the determination of a heartbeat. Today, you'll harness that precision to build a system that the wasteland desperately needs — a reliable timekeeper that can trigger actions exactly when they're needed most.

What You'll Learn

When you finish this lesson, you'll be able to:

  • Wire and configure a DS3231 Real-Time Clock module to maintain accurate time
  • Display current time on an LCD screen with proper formatting
  • Create conditional logic that triggers events at specific times
  • Build a complete timed automation system using the HERO Board
  • Handle RTC initialization and power loss recovery
  • Combine multiple components (RTC, LCD, LED) into a cohesive timing system

Understanding Real-Time Clocks

Think of a Real-Time Clock (RTC) as the ultimate backup timekeeper. While your microcontroller can count milliseconds like a sprinter counting steps, it loses track of time the moment power disappears. An RTC is like that friend who never forgets an appointment — it has its own battery backup and keeps counting seconds, minutes, hours, days, and even years, regardless of what happens to the main power.

The DS3231 RTC module we're using contains a crystal oscillator that vibrates 32,768 times per second with extraordinary precision. This frequency isn't random — it's exactly 2^15, which makes it perfect for binary counting systems. Each vibration is like a tiny mechanical heartbeat that drives the time calculation forward.

But why do we need such precision for automation? Consider a greenhouse irrigation system that needs to water plants at 6 AM daily, or a security light that should activate at sunset. Without an RTC, your microcontroller would lose track of time every power outage, requiring manual reset. With an RTC, your system maintains perfect temporal awareness, making truly autonomous operation possible.

The magic happens when you combine time awareness with conditional logic. Your program can check the current time and compare it to predetermined trigger points, executing different actions based on whether specific time conditions are met. This transforms your microcontroller from a simple input/output device into a sophisticated scheduling system.

Wiring the Time-Triggered System

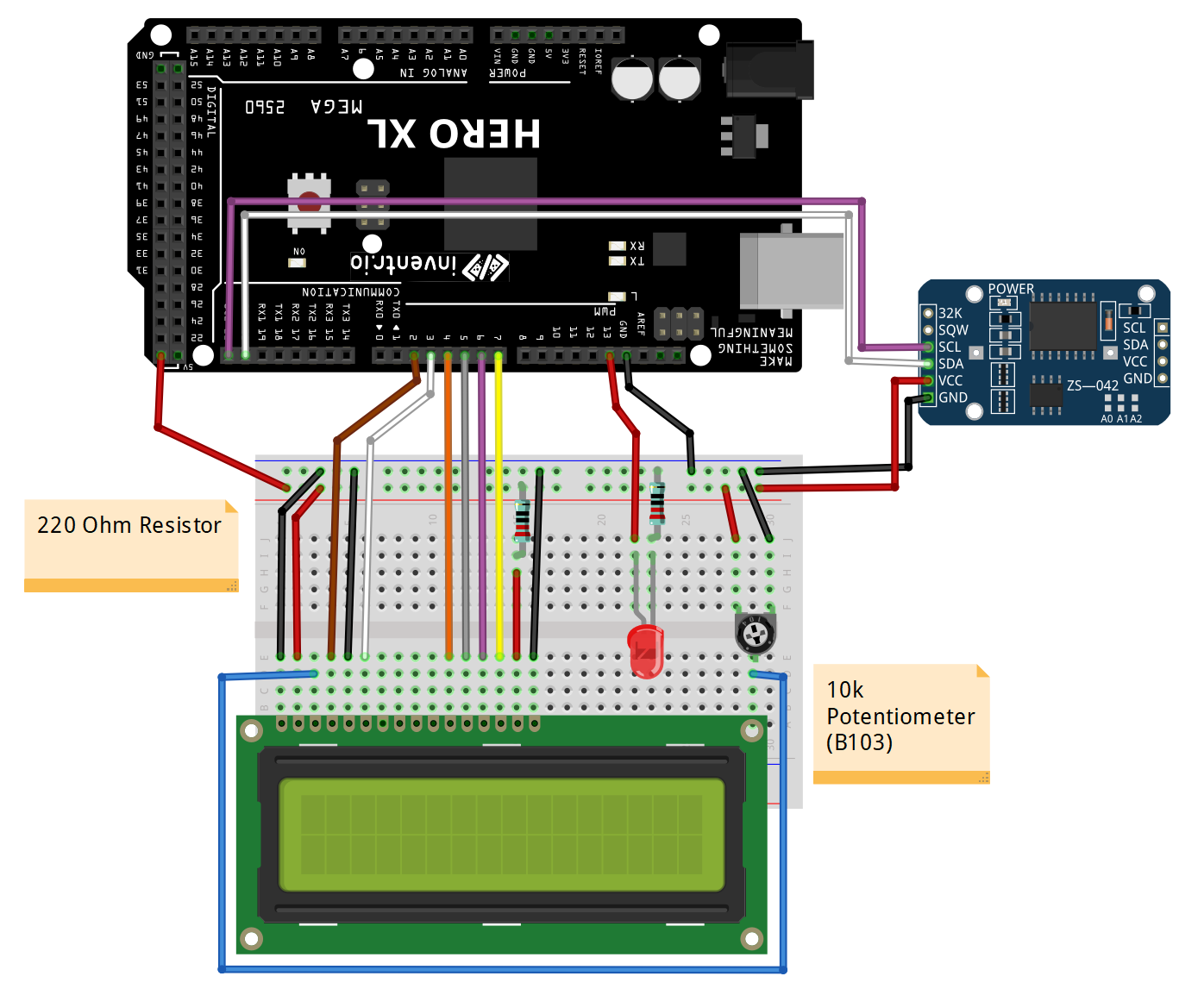

Wiring diagram for RTC, LCD, and LED circuit

The RTC module uses I2C communication, which requires only two data wires plus power. This protocol lets multiple devices share the same communication bus without interference.

  1. RTC Module: VCC to 5V, GND to GND, SDA to A4, SCL to A5 (these are the dedicated I2C pins)
  2. LCD Display: VSS and RW to GND, VDD to 5V, V0 to center tap of 10kΩ potentiometer for contrast
  3. LCD Data: RS to pin 2, Enable to pin 3, D4-D7 to pins 4-7 (we're using 4-bit mode to save pins)
  4. LED: Connect through 220Ω resistor to pin 13, other end to GND
  5. Power Distribution: Use breadboard power rails to distribute 5V and GND cleanly
Critical Connection
