Magic Servo Dial (Day 13)

The Mystic Portal Alignment

Deep in the ruins of Neo-Tokyo's underground facility, you discover what the survivors call the Magic Servo Dial. Dust particles dance in shafts of emergency lighting as you approach the weathered control panel. The servo motor attached to this ancient potentiometer dial once regulated atmospheric pressure in the facility's bio-domes. Now it might be your key to survival.

Your fingers trace the circular path of the dial's rotation. Turn it clockwise, and something mechanical whirs to life in the shadows. Turn it counter-clockwise, and the whirring slows to a stop. This isn't just any dial, it's a precision instrument that translates your hand movements into exact mechanical positioning. The servo motor doesn't just spin randomly like the motors you've worked with before. It knows exactly where it is and exactly where you want it to go.

The facility's automated systems are still partially functional, but they need precise calibration to operate safely. The bio-dome's ventilation system requires exact angles. The solar panel arrays need precise positioning to track the weak sun filtering through the radioactive haze. Water pumps must be positioned at specific angles to maintain pressure without wasting precious resources.

As you examine the setup more closely, you realize this is your introduction to servo control. Unlike the continuous rotation motors that power fans or wheels, servo motors are about precision and positioning. They're the muscles behind robotic arms, camera gimbals, and automated doors. In your post-apocalyptic world, they're the difference between a system that works and one that fails catastrophically. Master this Magic Servo Dial, and you'll have unlocked one of the most versatile tools in your survival electronics arsenal.

What You'll Master

When you finish this lesson, you'll be able to:

• Control a servo motor's position with precise angle commands
• Read analog input from a potentiometer and convert it to meaningful servo positions
• Map numerical ranges to create smooth, responsive control systems
• Understand the difference between continuous rotation motors and position-controlled servos
• Create interactive control interfaces that respond instantly to user input
• Apply servo control principles to real-world positioning challenges

This isn't just about making a motor move. You're learning precision control that forms the foundation for robotics, automation, and any system where exact positioning matters.

Understanding Servo Motors

Think of a servo motor as the ultimate perfectionist. While a regular motor is like a car that can only accelerate or brake, a servo is like a skilled archer who can hit any target with pinpoint accuracy. Inside every servo motor lives a position sensor that constantly reports "I'm currently at 45 degrees" or "I'm at 120 degrees." The servo's internal control circuit compares this with where you want it to be and makes tiny adjustments until it reaches the exact position.

This is fundamentally different from the DC motors you've worked with. Those motors spin continuously in one direction or the other. Servos move to a specific angle and stay there, fighting against external forces to maintain their position. It's like the difference between a spinning wheel and a clock hand that can point to any hour.

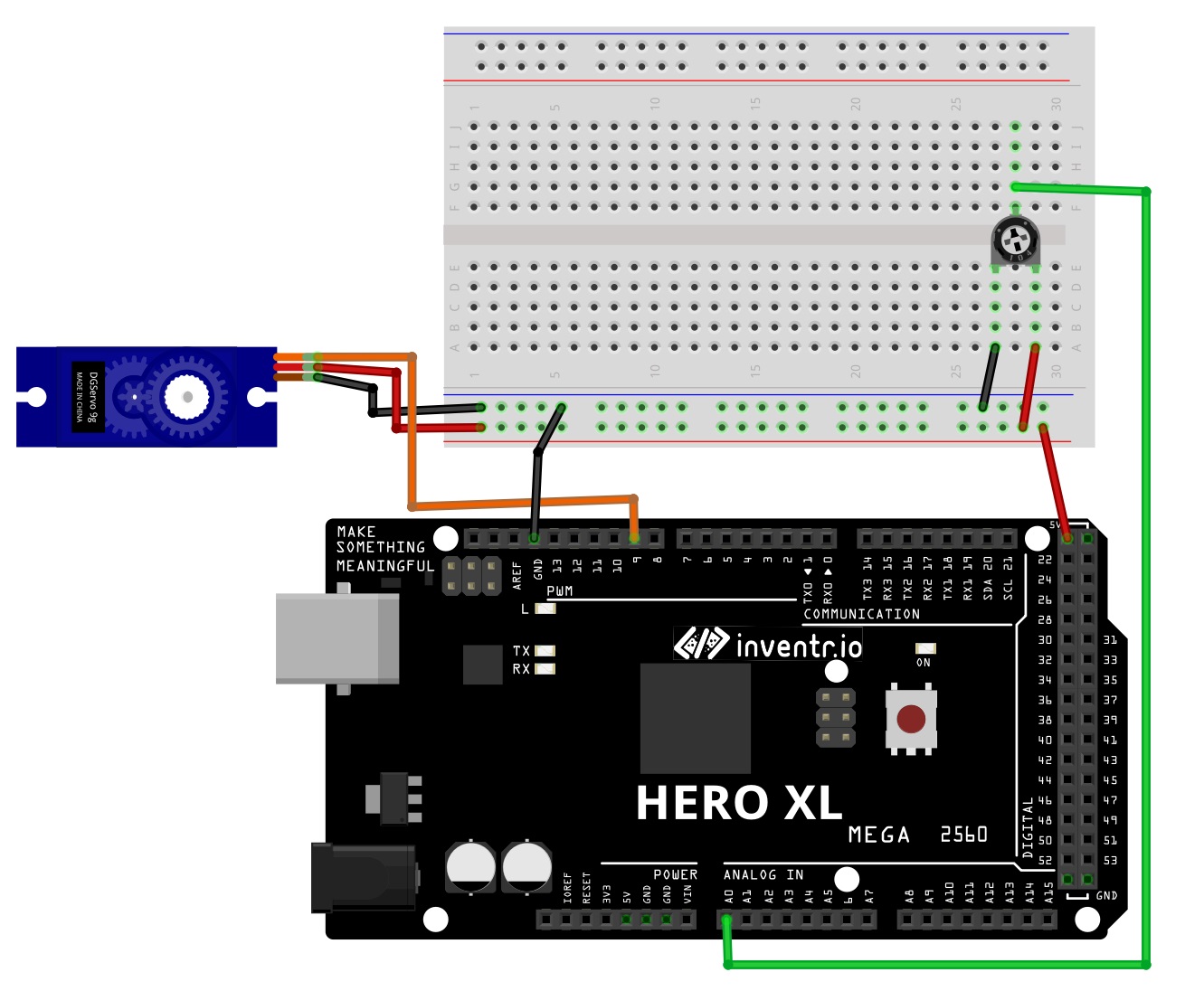

The potentiometer in this circuit acts as your command input. As you rotate the knob, it produces different voltage levels that your HERO Board reads as analog values from 0 to 1023. Your code then translates these numbers into servo positions from 0 to 180 degrees. This creates a direct, intuitive connection between your hand movement and the servo's position.

The beauty of this system lies in its responsiveness. Unlike systems with complex interfaces, turning a physical dial gives you immediate tactile feedback. You can feel the resistance of the potentiometer and see the servo respond in real-time. This direct manipulation makes it perfect for applications requiring precise, human-controlled positioning.
