The Arcane Testing Chamber
The massive stone door slides shut behind you with a grinding finality that sends shivers down your spine. Ancient runes carved deep into the walls pulse with an ethereal blue light, casting dancing shadows across what appears to be some kind of testing chamber. The air crackles with residual magical energy, and you can almost taste the power that once flowed through this forgotten place.
Before you stretches a peculiar contraption, clearly the work of some long-dead mage-engineer. Five crystalline orbs hover in perfect alignment above ornate pedestals, each one connected to what looks suspiciously like a pressure plate. The crystals dim and brighten randomly, as if responding to some unseen magical algorithm. A brass plaque, green with age, bears an inscription in flowing script: "Prove thy reflexes worthy, or face the consequences of hesitation."
Your HERO Board hums quietly in your pack, its circuits somehow resonating with the ancient magic surrounding you. This isn't just another puzzle to solve. This is a trial by fire, a test that will push your reaction time and focus to their absolute limits. The crystals begin to pulse faster now, sensing your presence. Whatever enchantment governs this chamber, it's awakening after centuries of slumber.
A low, melodic tone echoes from hidden speakers carved into the walls themselves. The game has begun, and failure means more than just disappointment. In this world where magic and technology intertwine, only those quick enough to match the rhythm of both will survive to see what lies beyond this chamber. Your fingers instinctively move toward your components. Time to build your own version of this ancient reflex trainer.
What You'll Master Today
When you complete this training protocol, you'll possess the skills to create a sophisticated reflex testing system. You'll understand how to coordinate multiple inputs and outputs, manage timing-critical operations, and build interactive systems that respond to human reflexes in real-time.
More specifically, you'll be able to build circuits that randomly select targets, measure human response times with precision, provide immediate audio feedback, and create engaging challenge systems. These are the fundamental building blocks of interactive entertainment, training simulators, and reaction-based control systems.
By the end, you'll have constructed your own magical training chamber, complete with unpredictable challenges and satisfying success indicators.
The Science Behind Reflex Training
Think about the last time you played whack-a-mole at an arcade. The machine randomly lights up different holes, you have a split second to react, and success brings that satisfying thunk of your mallet connecting with the target. That simple concept represents a sophisticated coordination of timing, randomization, and feedback systems.
Reflex training systems work by exploiting a fundamental aspect of human psychology: we're wired to respond to unexpected stimuli. When something lights up in our peripheral vision, our brain immediately shifts attention and triggers motor responses. The key is making the challenge unpredictable enough to prevent pattern recognition, but fair enough that success feels achievable.
From a technical perspective, we're building what engineers call a "real-time interactive system." The microcontroller must generate truly random events, monitor multiple input channels simultaneously, measure response times with millisecond precision, and provide immediate feedback. This requires careful coordination between hardware timing, interrupt handling, and state management.
Professional reaction training systems are used everywhere from pilot simulators to medical training equipment. They all share the same core principle: present a stimulus, measure the response, provide feedback, repeat. Simple in concept, surprisingly complex in execution.

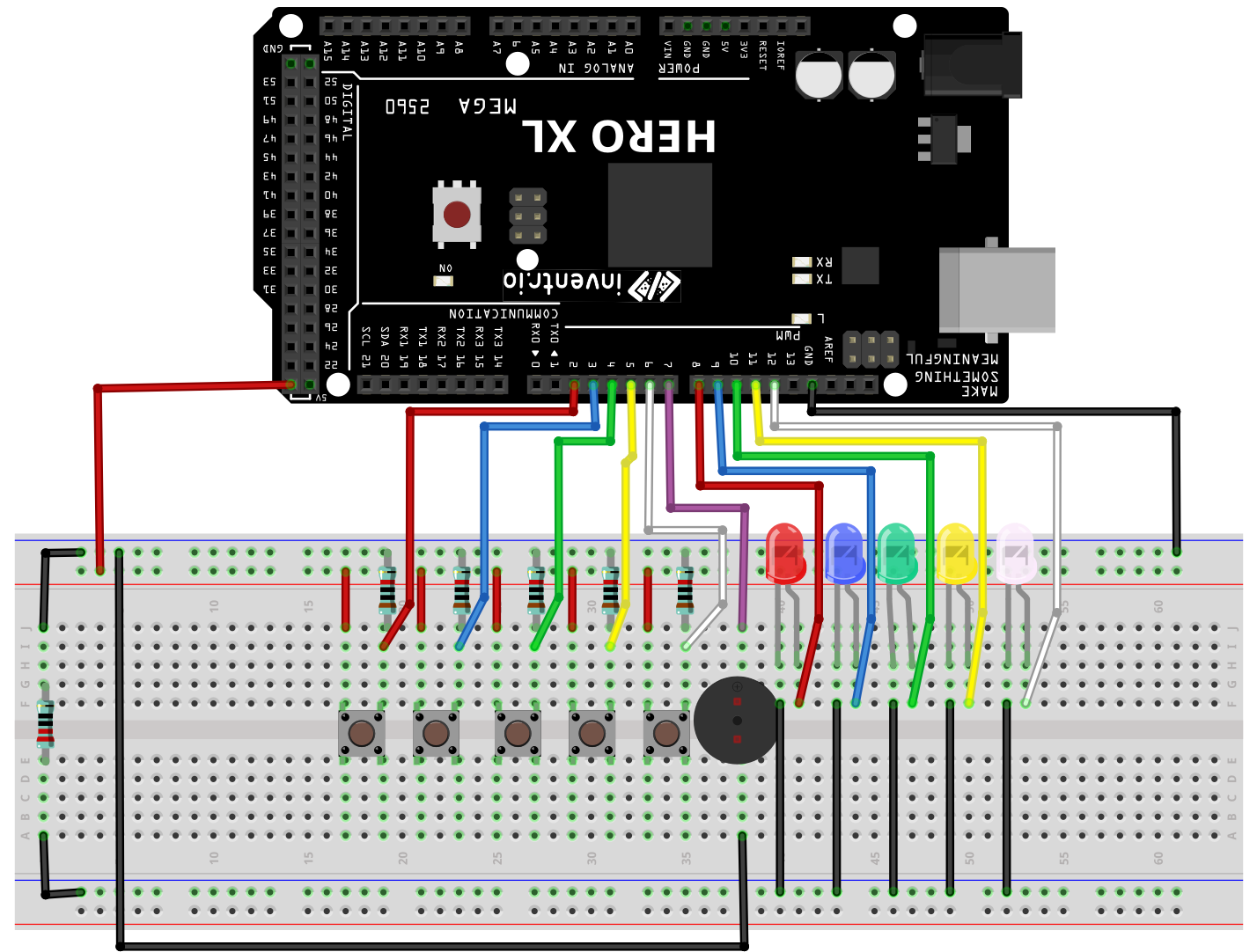

Wiring the Training Chamber

This circuit creates five independent challenge stations, each with its own LED target and response button. The electrical design prioritizes reliability and responsiveness.
- LED Array (Pins 8-12): Each LED connects through a current-limiting resistor to prevent burnout. We space them across different pins to avoid overwhelming any single port register.
- Button Array (Pins 2-6): Digital input pins with internal pulldown resistors. These pins can handle rapid state changes without bouncing issues.
- Buzzer (Pin 7): Connected to a PWM-capable pin for precise frequency control. The buzzer provides audio feedback for both success and failure.
- Power Distribution:
