Magic Labyrinth Navigator (Day 09)

The Maze Awakens

Deep beneath the ruins of the old world, where the concrete arteries of civilization once pulsed with life, you've discovered something extraordinary. The emergency bunker's auxiliary power grid flickers to life as you connect the final salvaged components, and suddenly the darkness transforms into possibility.

Your hands steady on the makeshift workbench, you stare at the LCD display pulled from a defunct medical terminal. Its blue glow cuts through the underground gloom like hope through despair. Beside it, the analog joystick from an abandoned gaming console sits waiting, its weathered surface telling stories of countless battles fought in brighter times.

This isn't just another circuit assembly. This is your ticket to mapping the impossible: the ever-shifting labyrinth that guards the deeper sections of the bunker complex. The old security system still runs down there, rearranging corridors according to patterns lost with the fall. But patterns can be learned, mazes can be conquered, and with the right navigator, even the most twisted paths reveal their secrets.

The LCD screen waits for your command. The joystick trembles slightly under your touch, eager to translate your will into digital movement. In this moment, surrounded by the ghosts of the past and the promise of discovery, you're about to build something that could change everything: a Magic Labyrinth Navigator that will guide you through the darkness below.

The bunker's ventilation system hums its approval as you reach for the first wire. Time to turn salvaged dreams into working reality.

What You'll Learn

When you finish this lesson, you'll be able to:

  • Connect an LCD display and analog joystick to create an interactive navigation system
  • Read analog joystick values and translate them into screen coordinates
  • Use the map() function to scale analog readings into useful display ranges
  • Control cursor position on an LCD screen in real-time
  • Create responsive user interfaces that react instantly to physical input
  • Build the foundation for complex navigation and menu systems

Understanding the Concept

Think about the last time you used a computer mouse or trackpad. You move your hand in one direction, and a cursor moves across the screen in response. The physical motion gets translated into digital coordinates, creating that magical connection between your intentions and what happens on screen.

An analog joystick works on the same principle, but instead of optical sensors or capacitive touch, it uses potentiometers. These are variable resistors that change their resistance based on the joystick's position. When you push the stick left, one potentiometer's resistance decreases while another increases. Push up or down, and different potentiometers react.

Your HERO Board reads these resistance changes as analog voltages between 0 and 5 volts, then converts them into digital values from 0 to 1023. But here's where it gets interesting: an LCD screen doesn't have 1024 positions across its width. A typical 16x2 display has exactly 16 columns and 2 rows. So we need to squeeze that huge range of joystick values into the much smaller range of screen coordinates.

This is where the map() function becomes your best friend. It's like having a universal translator that can take any range of numbers and proportionally scale them to any other range. Joystick reading of 512 (dead center) becomes screen position 8 (center of a 16-character display). Reading of 0 becomes position 0, and 1023 becomes position 15.

The result? Smooth, responsive control that feels natural and intuitive. Move the joystick, watch the cursor dance across the screen in perfect harmony with your movements. It's the foundation of every interactive system you've ever used, from game controllers to industrial control panels.

Wiring Your Navigation System

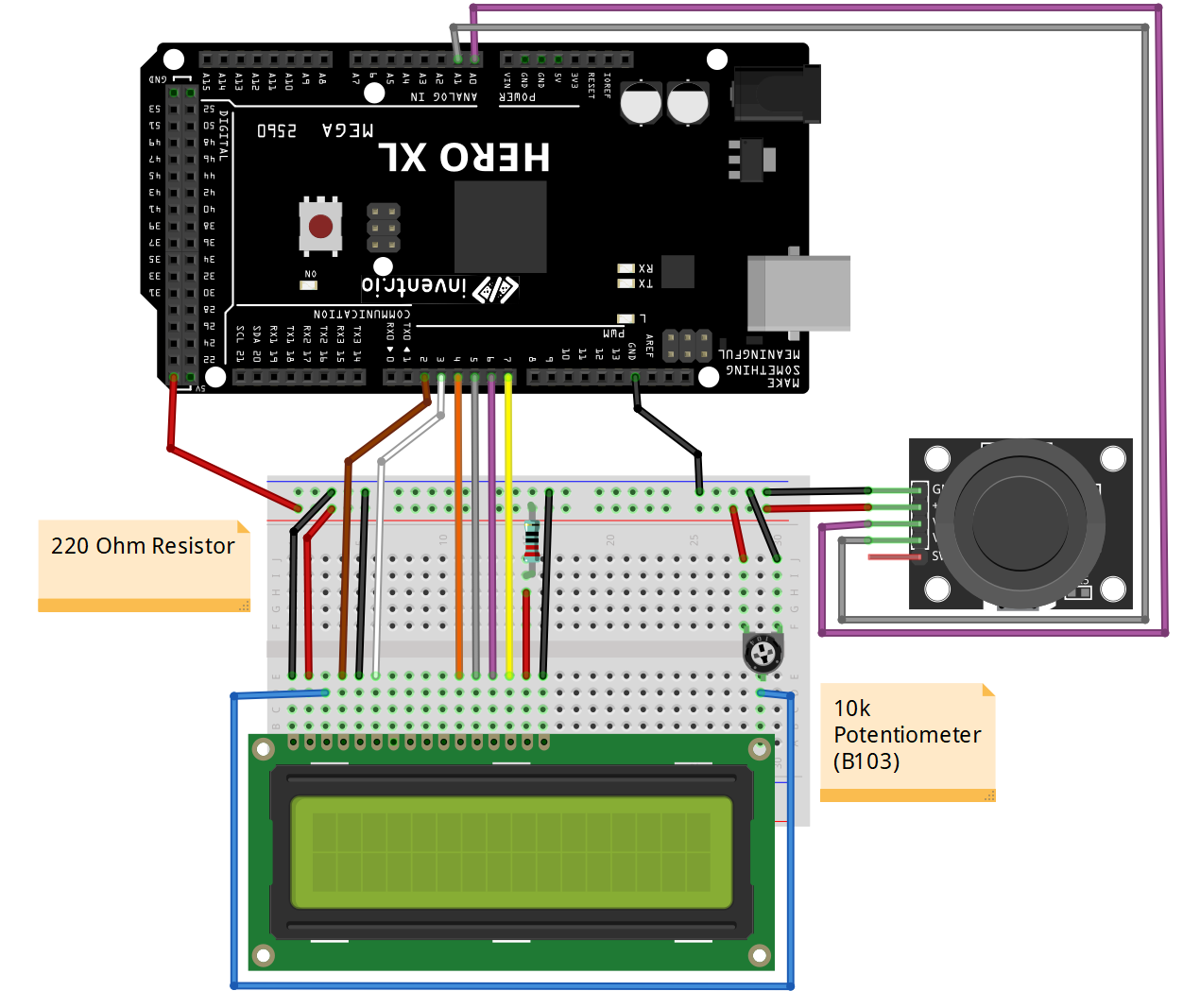

Magic Labyrinth Navigator Wiring Diagram

The LCD requires six digital connections for communication. We're using the standard 4-bit mode, which saves precious pins while maintaining full functionality. The joystick needs two analog inputs to read its X and Y axes.

  1. LCD RS pin → HERO Board pin 2 (Register Select - tells LCD whether we're sending commands or data)
  2. LCD Enable pin → HERO Board pin 3 (Enable pulse triggers LCD to read the data)
  3. LCD D4 pin → HERO Board pin 4 (Data bit 4 - part of our 4-bit data bus)
  4. LCD D5 pin → HERO Board pin 5 (Data bit 5)
  5. LCD D6 pin → HERO Board pin 6 (Data bit 6)
  6. LCD D7 pin → HERO Board pin 7 (Data bit 7 - highest data bit)
  7. LCD VSS & RW pins → Ground
