Magic Stepper Oracle (Day 07)

The Oracle Awakens

The ancient chamber trembles as you approach the final artifact hidden within Pandora's Box. This isn't just another component—it's the legendary Magic Stepper Oracle, a precision instrument capable of pointing toward any destination with mechanical certainty. The survivors speak of it in hushed whispers around dying campfires, claiming it can divine the location of hidden supply caches, safe zones, even other survivors.

You run your fingers along the Oracle's cylindrical body, feeling the precise grooves that allow it to rotate in exact increments. Unlike the crude motors you've salvaged before, this stepper motor doesn't spin wildly—it moves with deliberate, calculated steps. Each rotation is divided into 2048 precise positions, like a compass that can point to any degree with mathematical accuracy.

But the Oracle requires a translator—the ULN2003 driver board that converts your HERO Board's digital whispers into the high-voltage commands the stepper motor understands. Together, they form a system of unprecedented precision in this chaotic world. With your salvaged button as a trigger, you can summon the Oracle's wisdom whenever you need guidance.

The wasteland stretches endlessly in all directions. Resources dwindle. Hope fades. But with the Magic Stepper Oracle under your command, you'll never walk blindly again. The question isn't whether you can build it—after 73 days of survival, your skills are sharp as scavenged steel. The question is: are you ready to wield the power of absolute precision?

What You'll Master

When you complete this lesson, you'll command one of the most precise mechanical devices in your survival arsenal. You'll understand how stepper motors achieve exact rotational positioning, why they need specialized driver circuits, and how to harness their power for applications requiring pinpoint accuracy.

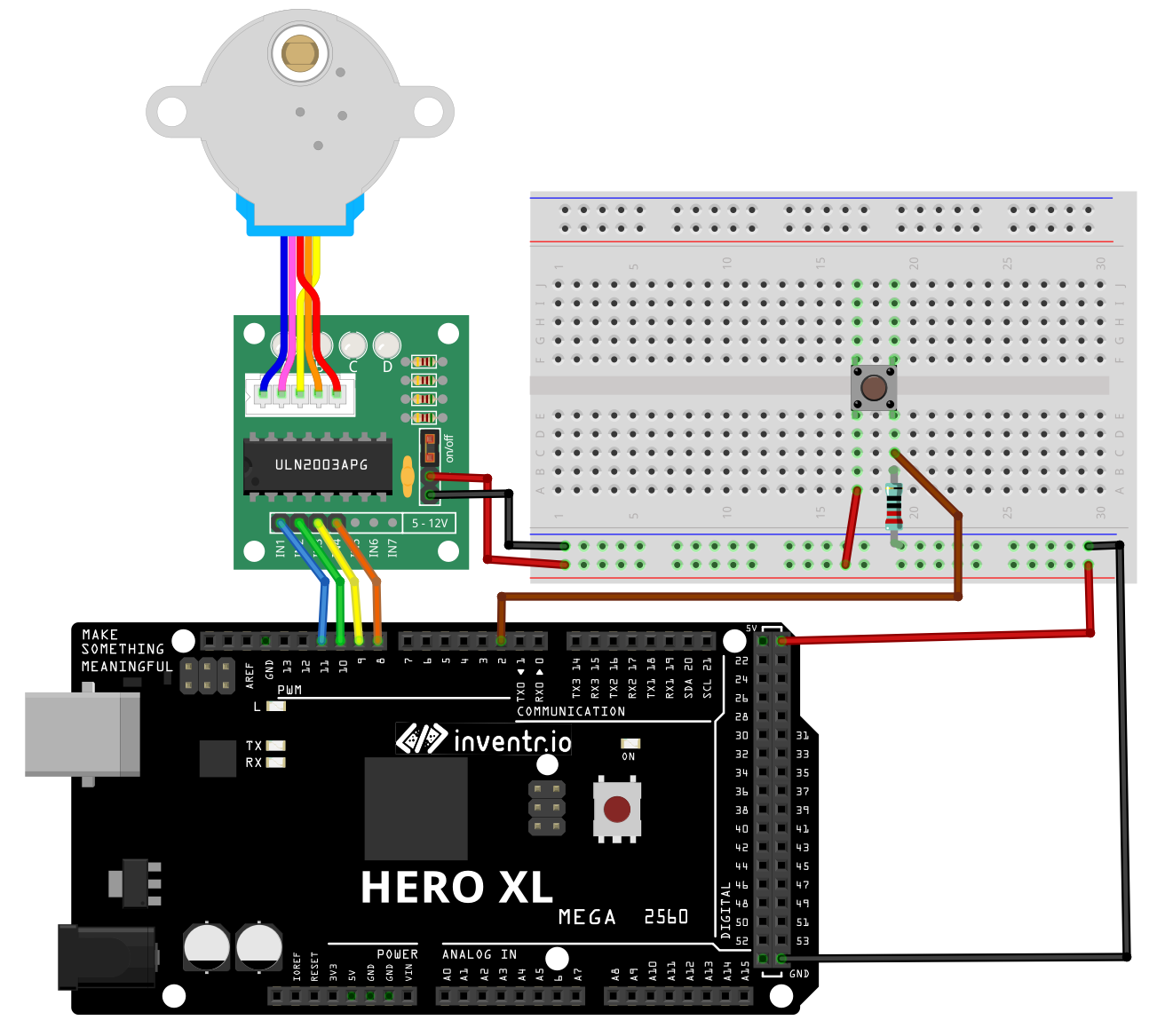

You'll wire the 28BYJ-48 stepper motor through its ULN2003 driver board, learning why this partnership is essential for proper motor control. Your HERO Board will generate the precise sequence of signals needed to rotate the motor to any position you specify.

By the end, you'll create an interactive Oracle system that responds to button presses by rotating to random positions, simulating the ancient practice of seeking guidance from mechanical divination. More importantly, you'll understand the principles behind automated positioning systems, robotic joints, and precision mechanical control.

Understanding Stepper Motors

Most motors you encounter are like wild horses—powerful but uncontrolled. A regular DC motor spins freely when you apply voltage, and stopping it at a specific angle is nearly impossible. Stepper motors are different. They're like precision clockwork, designed to move in exact, repeatable increments called steps.

Think of a stepper motor as a mechanical version of a digital clock. Instead of smooth, continuous motion, it advances one tick at a time. The 28BYJ-48 stepper motor divides a complete rotation into 2048 individual steps. That means each step rotates the motor shaft by exactly 0.17578125 degrees. This precision makes stepper motors perfect for applications where you need to position something exactly—like printer heads, robotic arms, or automated camera mounts.

But stepper motors can't connect directly to your HERO Board. They require specific voltage levels and current that would damage your microcontroller. The ULN2003 driver board acts as a translator and amplifier, converting your board's 5V logic signals into the higher-voltage pulses the stepper motor needs. It's like having an interpreter who speaks both languages fluently.

The magic happens through electromagnets inside the motor. By energizing these magnets in a specific sequence, you create a rotating magnetic field that pulls the motor's rotor along step by step. Change the sequence speed, and you control rotational velocity. Reverse the sequence, and the motor spins backward. Skip steps in the sequence, and you can make the motor jump to any position instantly.
