Magic Melody Machine (Day 05)

The Symphony of Survival

The wasteland stretches endlessly before you, a broken tapestry of twisted metal and forgotten dreams. In this harsh reality where civilization crumbled decades ago, music became more than entertainment. It became hope itself.

Your latest discovery changes everything. Deep within the ruins of what was once a music conservatory, you've uncovered fragments of ancient sheet music and a peculiar device that responds to touch and movement. The survivors speak in hushed tones about the old world's "melody machines" that could lift spirits and unite communities through the power of sound.

With your HERO Board clutched tightly in your weathered hands, you realize this isn't just another scavenging expedition. This is your chance to rebuild something beautiful from the ashes. The components scattered around you—buttons worn smooth by countless fingers, a dial that once controlled volume in concert halls, a small speaker that might still remember how to sing—these aren't just parts. They're the building blocks of hope.

As dust swirls through the broken windows, casting dancing shadows across your workspace, you begin to understand. The melody machine won't just make noise. It will make music that can pierce through despair itself. Each button press will be a note of defiance against the silence that has consumed this world for too long.

What You'll Master

When you complete this lesson, you'll be able to:

  • Create dynamic musical tones that respond to analog input from a potentiometer
  • Build multi-button interfaces that trigger different pitches and frequencies
  • Combine digital button reads with analog sensor data for complex interactions
  • Map analog values to meaningful frequency ranges for musical expression
  • Control tone duration and timing to create musical phrases
  • Design responsive audio systems that adapt to user input in real-time

Understanding the Magic

Think of your melody machine as a digital piano with a twist. Traditional pianos have fixed keys that play predetermined notes, but your creation goes beyond those limitations. The potentiometer acts like a pitch-bend wheel on a synthesizer, allowing you to sweep through frequencies smoothly rather than jumping between discrete notes.

The four buttons become your musical triggers, but instead of playing the same note each time, they multiply the base frequency you set with the potentiometer. This creates harmonic relationships—musical intervals that sound pleasant together. When you press button one, you hear the fundamental frequency. Button two doubles it for an octave higher. Button three triples it, and button four quadruples it.

This system mimics how acoustic instruments create overtones naturally. A guitar string doesn't just vibrate at one frequency; it creates a complex series of harmonics that give the instrument its distinctive character. Your melody machine harnesses this same principle, but with electronic precision and infinite adjustability.

The real magic happens in the mapping function. Potentiometers output values from 0 to 1023, but human ears perceive frequencies roughly from 20 Hz to 20,000 Hz. Your code translates the physical rotation of a knob into musically meaningful frequencies, creating an intuitive interface where small movements create subtle changes and large movements create dramatic shifts.

Building Your Melody Machine

Each connection serves a specific purpose in your musical instrument. Understanding why each wire goes where helps you troubleshoot and modify the design later.

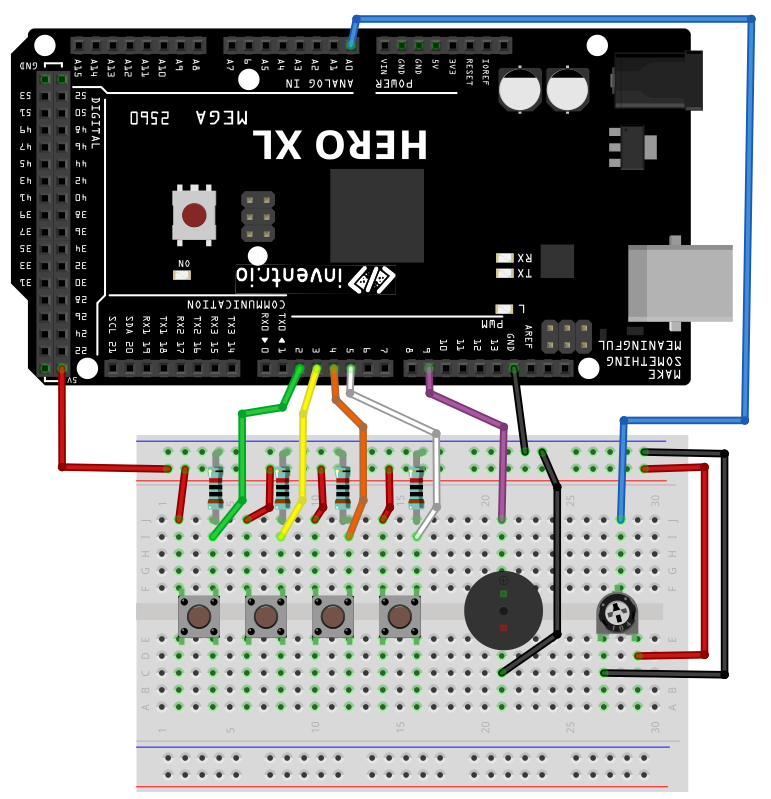

Melody Machine Wiring Diagram
  1. Buzzer to Pin 9: Pin 9 supports PWM (Pulse Width Modulation), which creates the square wave signals needed for tone generation. Digital pins without PWM can only turn on/off, not create the rapid oscillations that produce sound.
  2. Potentiometer Center Pin to A0: The center pin outputs a voltage that varies as you turn the knob. Analog pins can measure these voltage changes and convert them to digital values your code can use.
  3. Potentiometer Outer Pins: Connect one to 5V and the other to GND. This creates a voltage divider circuit. As you turn the knob, the center pin sees different voltages between these extremes.
  4. Buttons to Pins 2, 3, 4, 5: These digital pins have internal pull-up resistors available, which eliminate the need for external resistors. When the button is pressed, it connects the pin to ground, creating a LOW signal.
  5. Button Ground Connections: All buttons share a common ground connection. This reduces wire clutter while ensuring each button can properly signal when pressed.
