Magic Sensor Light (Day 02)

The Darkness Creeps In

The ancient bunker groans around you, its emergency lighting flickering like dying candles. You've been exploring these underground ruins for hours, following the cryptic map from Pandora's Box, and now the last of your flashlight batteries are giving out. The shadows seem to press closer with each dim pulse of the overhead strips.

But wait. Your HERO Board pulses softly in your pack, and suddenly you remember the photoresistor sensor you salvaged from the upper levels. The ancients were clever, you think, running your fingers over the small component. They built systems that could sense light itself, responding to the very presence or absence of illumination.

As you peer deeper into the corridor ahead, an idea sparks. What if you could build a light that gets brighter as the darkness deepens? A reverse sensor that fights back against the encroaching shadows, growing more powerful the more it's needed. The thought sends a shiver of excitement through you despite the cold bunker air.

You pull out your HERO Board and the precious LED from your kit. Time to turn the tables on this darkness. Time to build something that makes light from the very absence of it. The ancients left you their secrets, and now you're going to put them to work. The photoresistor gleams dully in your palm, waiting to become part of something greater than the sum of its components.

What You'll Master

When you complete this mission, you'll command one of the most elegant sensor systems in your growing arsenal. You'll understand how photoresistors translate light into electrical signals, how analog-to-digital conversion lets your HERO Board read the world around it, and how pulse-width modulation gives you precise control over LED brightness.

More importantly, you'll grasp the concept of inverse relationships in sensor systems. You'll be able to map sensor readings to output values, creating systems that respond intelligently to environmental changes. This isn't just about making an LED glow brighter in the dark - it's about building responsive, adaptive electronics that react to their surroundings.

By the end, you'll have constructed a magic sensor light that automatically adjusts its brightness based on ambient light levels, and you'll understand the principles behind countless real-world applications from street lighting to camera exposure systems.

Understanding Light Sensing

Think about how your eye's pupil works. In bright sunlight, it contracts to a tiny pinhole, protecting your sensitive retina. But in a dark room, it dilates wide, desperately gathering every photon it can find. Your pupil doesn't just detect light - it responds to it, automatically adjusting to give you the best possible vision.

A photoresistor works on a similar principle, but backwards. Instead of opening wider in darkness, its electrical resistance changes. In bright light, electrons in the photoresistor material get excited and move freely, creating low resistance - like a wide-open highway for electrical current. But in darkness, those electrons settle down, creating high resistance - like rush hour traffic on a narrow road.

Your HERO Board reads this resistance change as varying voltage levels through its analog pins. High light means low resistance, which translates to higher voltage readings. Low light means high resistance and lower voltage readings. But here's where the magic happens - you can flip this relationship in software, making darkness trigger brightness instead of dimness.

This inverse relationship concept appears everywhere in engineering. Thermostats that turn on heat when temperature drops. Motion sensors that trigger lights when they detect stillness ending. Pressure valves that open wider when pressure builds. You're not just building a light sensor - you're learning to think like a systems engineer.

Wiring the Light Sensor Circuit

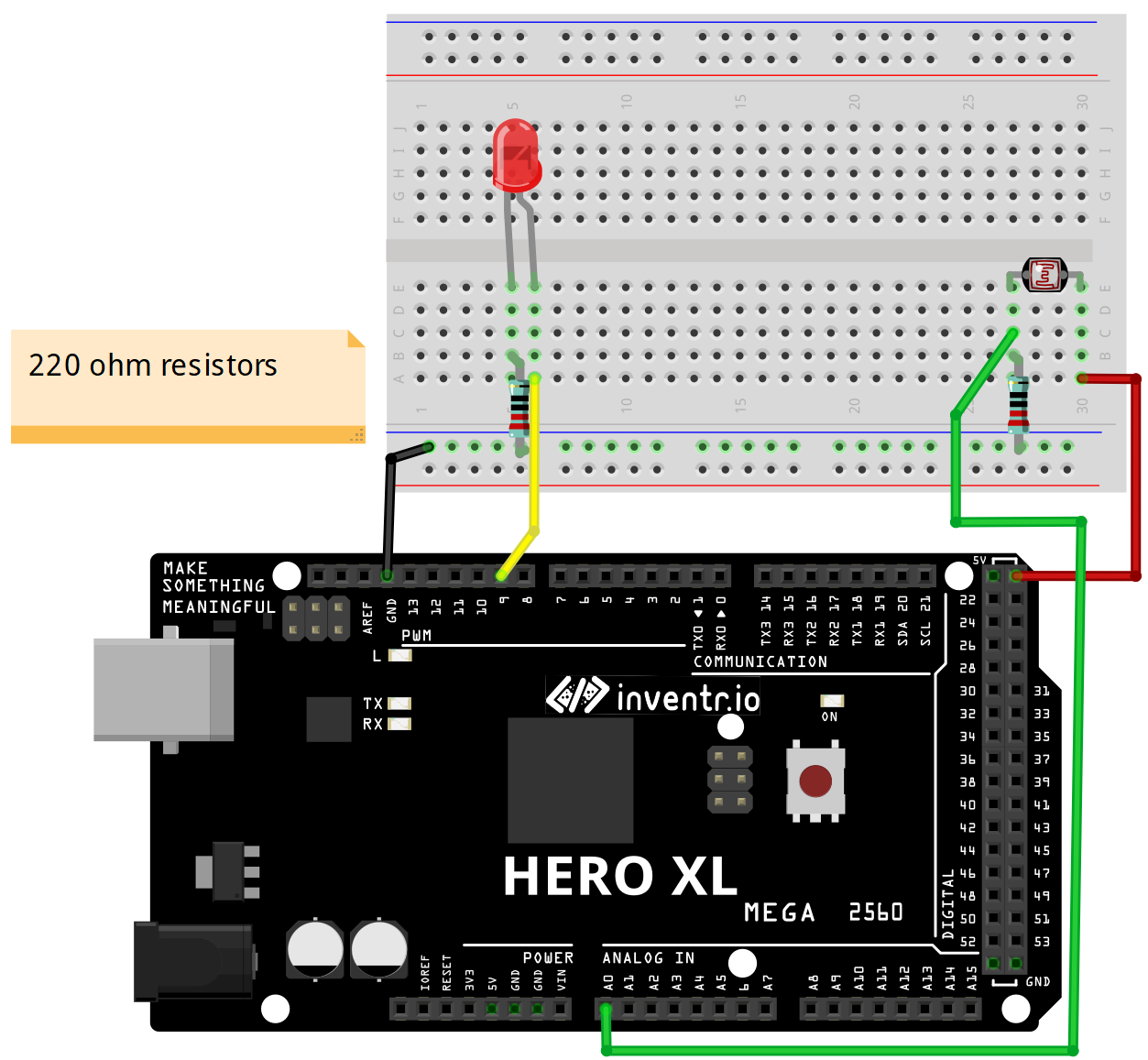

Magic Sensor Light Wiring Diagram
  1. Photoresistor to A0: Connect one leg of the photoresistor to analog pin A0. This pin can read varying voltage levels, perfect for sensing the resistance changes as light levels fluctuate.
  2. Photoresistor to 5V: Connect the other leg of the photoresistor to the 5V rail. This creates a voltage divider circuit when combined with our pull-down resistor.
  3. Pull-down resistor: Connect a 10kΩ resistor between A0 and ground (GND). This resistor ensures we get clean, readable voltage changes as the photoresistor's resistance varies.
  4. LED positive to Pin 9: Connect the longer leg (positive) of your LED to digital pin 9. We're using pin 9 because it supports PWM, giving us smooth brightness control instead of just on/off.
