14 – Color Changing Camouflage Device

Mission Brief: The Chameleon Protocol

The abandoned metro tunnels beneath Neo Tokyo stretch for kilometers, their concrete arteries pulsing with the ghostly hum of emergency lighting. Agent Chen pressed her back against the cold wall, listening to the echoing footsteps of Corporate Security's sweep team moving through the adjacent passage. Her standard-issue optical camo was useless down here—the shifting light patterns from flickering emergency strobes created too much visual noise for the holographic projectors to adapt.

What she needed was something simpler. More elegant. The kind of tech that had kept spies alive long before quantum processors and neural networks ruled the battlefield. In her field kit, three components waited: a trio of tiny light sources, each capable of producing a single pure color. Red for the emergency lighting zones. Green for the maintenance areas. Blue for the abandoned sections where only the cold glow of backup systems remained.

The principle was ancient—blend with your environment by matching its dominant color signature. But the execution required precision. Too bright and you'd stand out like a beacon. Too dim and you'd appear as a dark void against the ambient light. The HERO Board in her kit could control the intensity of each color channel with surgical accuracy, creating any shade needed to disappear into the urban underground.

As the security team's voices faded into the distance, Chen smiled grimly. Time to build the perfect chameleon device—one that could shift colors as quickly as shadows moved across these forgotten tunnels. In the world of electronic espionage, sometimes the oldest tricks were still the deadliest.

What You'll Learn

When you finish this mission, you'll be able to:

  • Build a color-changing device using RGB LEDs and precise analog control
  • Master the analogWrite() function to create smooth color transitions
  • Understand how additive color mixing works in electronic systems
  • Program timed sequences that cycle through different colors automatically
  • Wire multi-pin components safely without creating short circuits
  • Debug color mixing issues when your device doesn't produce the expected hues

Understanding RGB Color Mixing

Every color you see on a screen right now comes from the same three fundamental building blocks: red, green, and blue light. This isn't magic—it's how human eyes work. Your retinas contain three types of color receptors, each most sensitive to one of these primary colors. Mix them in different intensities, and your brain perceives every color in the rainbow.

An RGB LED is essentially three tiny light sources crammed into one package. Think of it like a microscopic stage with three spotlights—red, green, and blue—each controlled by its own dimmer switch. Want purple? Turn up red and blue while keeping green off. Need yellow? Mix red and green light while leaving blue dark. Pure white? Blast all three at maximum intensity.

The genius lies in the precision. Unlike mixing paint (where adding colors makes them darker), mixing light makes everything brighter. This is called additive color mixing, and it's why your computer monitor can produce millions of distinct colors using just three types of pixels. Each color channel can be controlled with 256 different intensity levels (0 to 255), giving you 16.7 million possible combinations.

For our camouflage device, this precision becomes tactical. Environmental lighting is rarely pure white—emergency areas glow red, maintenance zones appear green under fluorescent fixtures, and abandoned spaces often have that cold blue tint from backup systems. Match the dominant color, and you become nearly invisible to both human eyes and security cameras.

Wiring Your RGB Camouflage Device

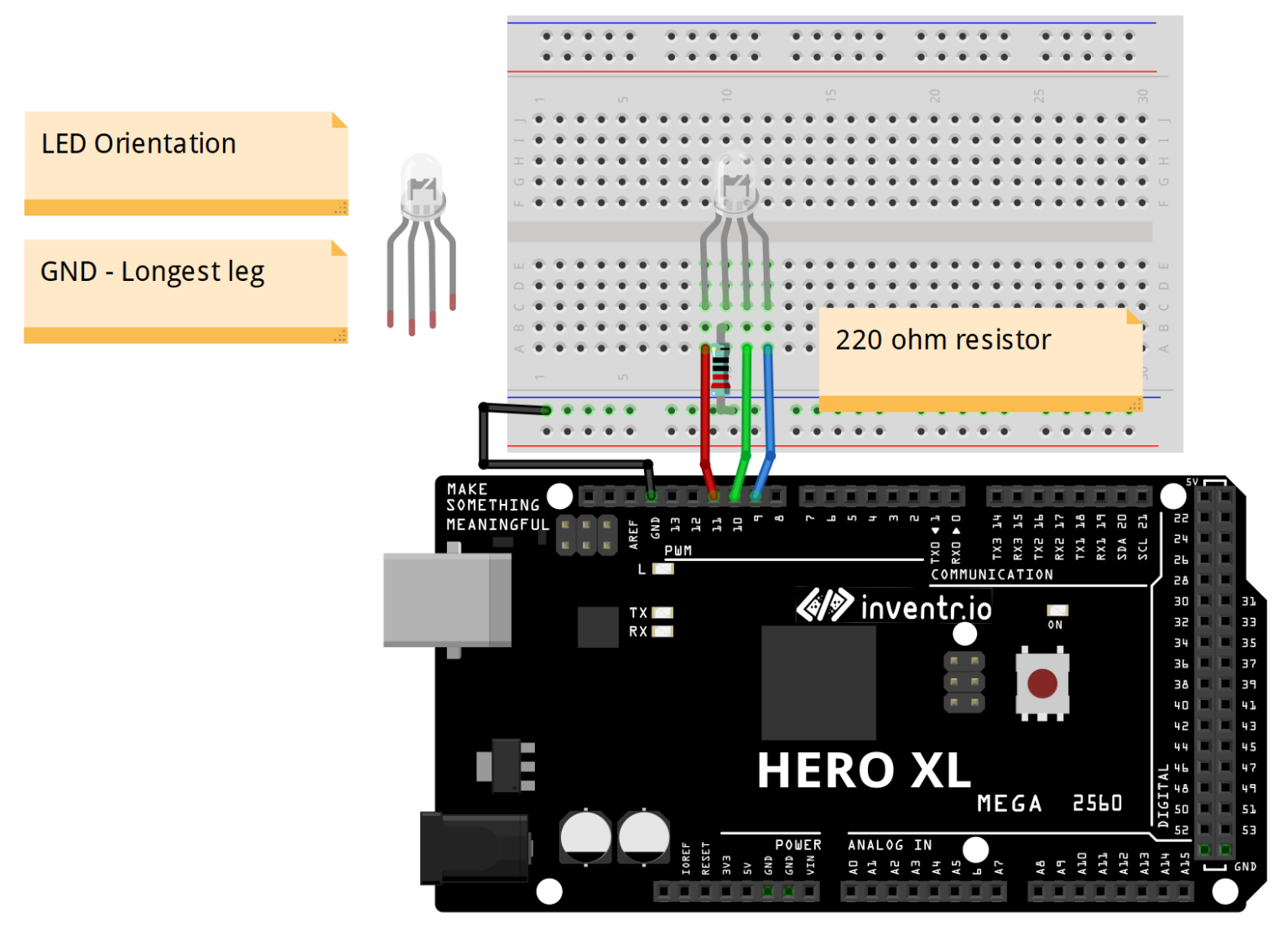

RGB LED Wiring Diagram

This wiring creates three separate dimmer circuits, each controlling one color channel:

  1. Red channel to pin 11: Uses PWM to create variable intensity red light. Pin 11 supports analogWrite() for smooth brightness control.
  2. Green channel to pin 10: Independent PWM control for the green LED. Combining this with red creates yellow and orange hues.
  3. Blue channel to pin 9: The third PWM pin completes our RGB control system. Mix with red for purple, or with green for cyan.
  4. Common cathode to GND: All three LEDs share this ground connection, completing the circuit for current flow.
Critical Warning

Never connect LED pins directly to 5V! The HERO Board's pins output 3.3V maximum, which is safe for most RGB LEDs. Higher voltages will burn out the LED permanently.
