12 – Hacking Device (w/Keypad)

The Vault Door Stands Before You

The emergency bunker's security door hums with electronic menace. Sixteen buttons arranged in a perfect grid, each one a potential key to survival or doom. The rebels who built this place weren't taking chances — whoever wants inside needs to prove they know the codes.

Your fingers trace the keypad's surface. Numbers 0 through 9, letters A through D, plus the cryptic asterisk and hash symbols. Somewhere in this maze of possibilities lies the combination that will unlock the vault's treasures. But this isn't about brute force — it's about understanding how these buttons actually communicate with the world beyond.

The keypad matrix before you represents decades of security engineering compressed into a simple grid. Each button press sends a unique signal through a web of connections that would make a spider jealous. Row pins and column pins work in perfect harmony, creating a coordinate system where every key has its place.

Time to crack the code. Not by guessing the password, but by building your own hacking device that can read every keystroke. Today you become the architect of digital surveillance, constructing a system that captures and decodes human input. The vault's secrets await, but first you must master the art of electronic eavesdropping.

What You'll Learn

When you finish this lesson, you'll be able to:

  • Wire a 4x4 matrix keypad to your HERO Board using the optimal pin configuration
  • Install and configure the Keypad library to handle matrix scanning automatically
  • Create a keystroke capture system that detects and reports every button press
  • Understand how row-column matrix scanning eliminates the need for 16 separate pins
  • Build a foundation for advanced security projects like password systems and access control
  • Debug keypad connections and troubleshoot common wiring mistakes

Understanding Matrix Keypads

Picture the lobby of a fancy apartment building. Instead of having a separate doorbell wire for each of the 16 units, the building uses a clever grid system. Four horizontal mail slots and four vertical message tubes create every possible apartment address. Unit 2B? That's the intersection of row 2 and column B. Brilliant engineering that saves on wiring costs.

Matrix keypads work exactly the same way. Instead of needing 16 individual pins (one for each button), they use just 8 pins total: 4 for rows and 4 for columns. When you press button '5', you're actually closing a connection between row 2 and column 2. The microcontroller scans through each row, checking which columns respond, and calculates which button was pressed.

This scanning happens incredibly fast, thousands of times per second. Your HERO Board becomes like a security guard checking every possible intersection constantly. The moment someone presses a button, the guard notices the new connection and reports which specific intersection just went active.

Matrix keypads appear everywhere in the real world: ATM machines, phone systems, security panels, microwave ovens, and industrial control systems. They represent one of the most elegant solutions in electronics — maximum functionality with minimum wiring complexity. Master this concept and you've unlocked a fundamental building block of human-machine interfaces.

Wiring Your Surveillance Network

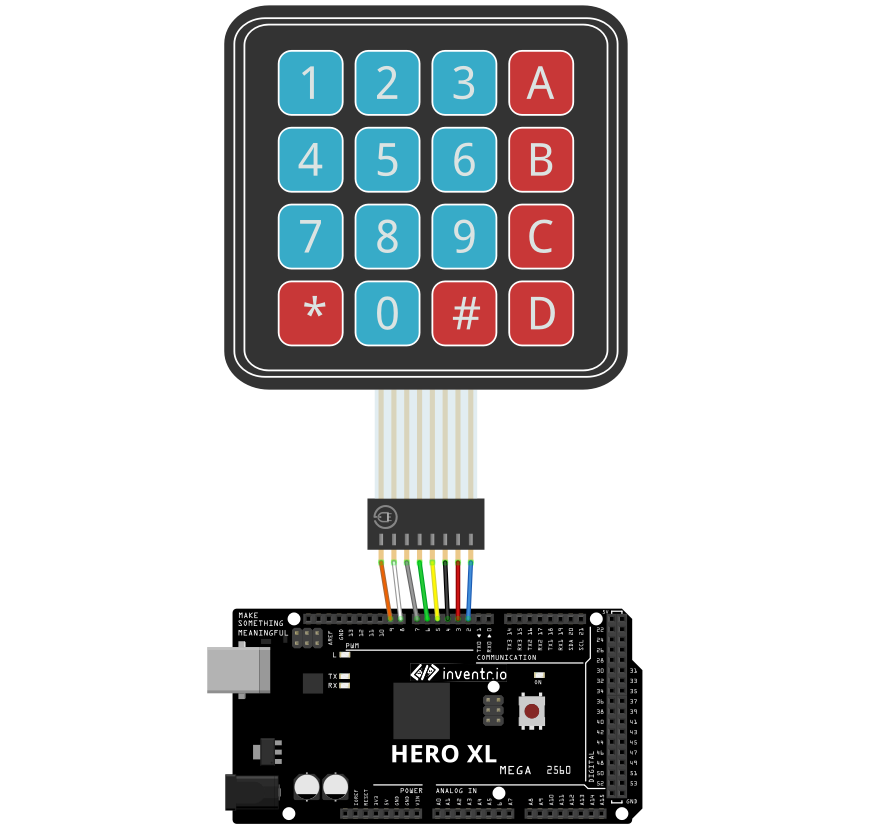

Keypad wiring diagram

The keypad's 8 pins connect to your HERO Board in a specific pattern that maximizes scanning efficiency. Each connection serves a crucial purpose in the matrix detection system.

  1. Row 1 (Pin 1) → Digital Pin 9: Controls the top row (1, 2, 3, A). This pin gets pulled HIGH during row scanning.
  2. Row 2 (Pin 2) → Digital Pin 8: Controls the second row (4, 5, 6, B). Sequentially activated during matrix scan.
  3. Row 3 (Pin 3) → Digital Pin 7: Controls the third row (7, 8, 9, C). Part of the systematic row activation cycle.
  4. Row 4 (Pin 4) → Digital Pin 6: Controls the bottom row (*, 0, #, D). Final row in the scanning sequence.
  5. Col 1 (Pin 5) → Digital Pin 5: Detects column 1 presses (1, 4, 7, *). Input pin that reads column state.
  6. Col 2 (Pin 6) → Digital Pin 4: Detects column 2 presses (2, 5, 8, 0). Monitors second column connections.
  7. Col 3 (Pin 7) → Digital Pin 3: Detects column 3 presses (3, 6, 9, #). Watches third column activity.
  8. Col 4 (Pin 8) → Digital Pin 2: Detects column 4 presses (A, B, C, D). Final column monitoring pin.
Pro Tip
