3 – Encrypted Messages using LCD1602 Display

Mission Briefing: Operation Double Agent

The abandoned laboratory grows colder as winter approaches. Through the frost-covered windows, you watch the rival faction's scouts circling your compound, their breath forming ghostly clouds in the frigid air. Intelligence reports confirm what you've suspected: they've intercepted your radio transmissions. Every message, every coordinate, every supply request has been compromised.

Commander Chen slides a salvaged LCD display across the metal table, its blue backlight casting eerie shadows on her weathered face. "We need secure communications, Agent. Something they can't decode even if they're listening." The weight of survival presses down on your shoulders. In this post-apocalyptic wasteland, information is more valuable than ammunition.

Your fingers trace the edges of the display unit. Sixteen characters wide, two rows tall. Enough space for coded messages that could mean the difference between life and death. The plan crystallizes in your mind: a hidden message system that only reveals its secrets when the right conditions are met. Press the button, and innocent words transform into critical intelligence. Release it, and the screen returns to its harmless disguise.

Outside, the wind howls through the skeletal remains of the city. Time is running short. The rival faction grows bolder each day, and your team needs a communication edge that could turn the tide of this underground war. Tonight, you'll build more than a display system. You'll construct a lifeline wrapped in the art of deception.

What You'll Master Today

When you complete this mission, you'll be able to create a dual-message display system that shows different content based on user interaction. You'll master the art of connecting LCD displays to your HERO Board, reading button inputs in real-time, and creating dynamic text that changes based on system state.

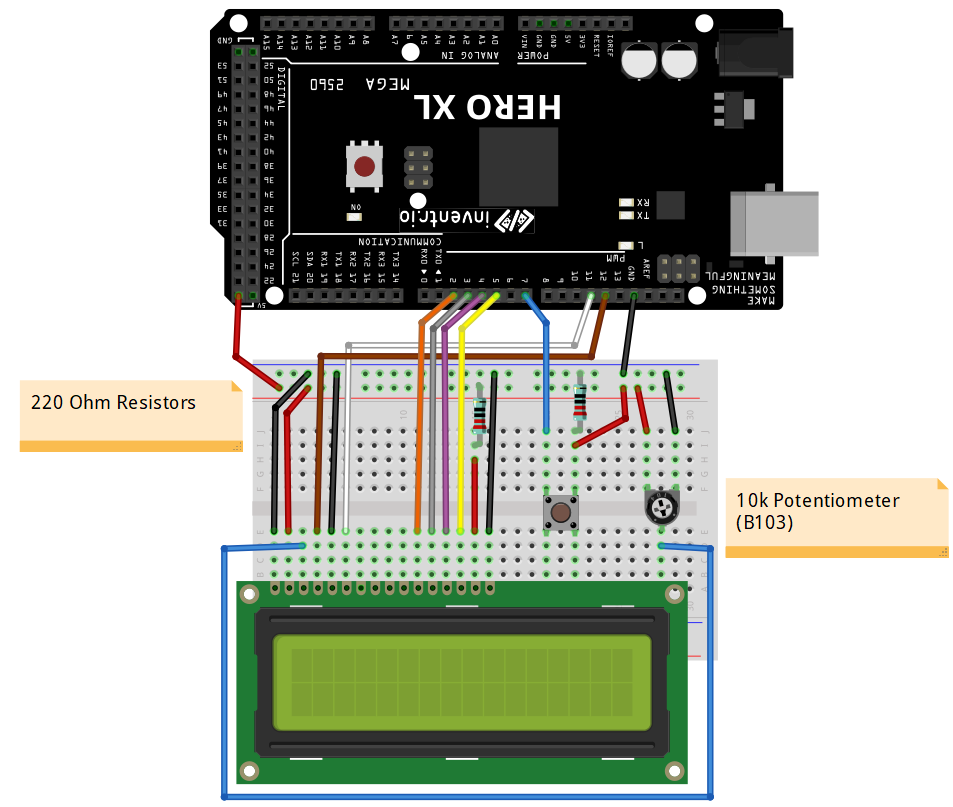

More specifically, you'll understand how to wire a 16x2 LCD display using the LiquidCrystal library, implement button-controlled message switching, and create a simple encryption metaphor through conditional display logic. This foundational skill opens the door to more complex user interfaces, data logging systems, and interactive control panels.

Understanding LCD Displays and User Input

Think of an LCD display as a digital billboard that you control pixel by pixel. Unlike the simple LEDs you've worked with before, LCD displays can show letters, numbers, and symbols in organized rows and columns. The 16x2 LCD gives you exactly what the name suggests: 16 characters across, 2 rows down. That's 32 total character positions to work with.

The magic happens through something called the HD44780 controller chip, which acts like a translator between your microcontroller and the display. You send it commands and data through a specific protocol, and it handles the complex task of lighting up the right segments to form readable characters. It's similar to how a theater director coordinates with lighting technicians to create different scenes.

Button input adds the interactive element. When you press a button, you're essentially closing an electrical circuit, allowing current to flow. Your HERO Board can detect this change and respond accordingly. Combined with an LCD display, this creates powerful user interfaces where actions produce immediate visual feedback.

In our encryption scenario, we're using the button as a "reveal" trigger. The LCD constantly displays one message, but when the button is pressed, it switches to show the hidden information. This simulates how real encryption systems work: the same data can appear completely different depending on whether you have the key to decode it.
