The Signal in the Static
The abandoned electronics lab sits in eerie silence, fluorescent lights flickering overhead like dying stars. Dust motes dance through shafts of pale light streaming through cracked windows, and the air carries the metallic tang of old circuits and forgotten experiments. Your fingers trace the outline of a small black device resting on the workbench—an IR receiver, no bigger than your thumb, yet capable of catching invisible signals from across the room.
In this post-apocalyptic world, stealth isn't just an advantage—it's survival. The old television remote in your hand might look harmless, a relic from the world before the collapse, but today it becomes something far more valuable: a silent trigger for your alarm system. No wires to cut, no sounds to betray your position. Just invisible light, pulsing with coded messages that only your HERO Board knows how to interpret.
The concept seems almost magical—pressing a button on a piece of plastic can instantly communicate with electronics across the room. But this isn't magic; it's infrared communication, the same technology that once changed television channels in millions of living rooms. Now, in the ruins of civilization, you'll harness that invisible language to build something the original inventors never imagined: a remote-controlled stealth alarm that could mean the difference between staying hidden and being discovered.
The stakes couldn't be higher. In a world where the wrong move at the wrong time can be fatal, you need systems that respond instantly to your commands without revealing your location. This infrared receiver will become your electronic sentinel, waiting patiently for the specific signal that tells it to spring into action. Every pulse of invisible light carries a unique digital fingerprint, and you're about to teach your board to read them all.
What You'll Master
When you complete this mission, you'll be able to turn any remote control into a silent command device. You'll understand how infrared signals work and why they're perfect for stealth applications. Your HERO Board will decode the invisible messages streaming from remote controls, and you'll know how to capture and interpret the unique codes that different buttons send.
More importantly, you'll grasp the architecture of wireless communication systems and how devices can listen for specific signals while ignoring everything else. This knowledge forms the foundation for countless projects: automatic door systems that respond to key fobs, home automation that reacts to your commands, and security systems that activate without physical contact.
The Science of Invisible Signals
Infrared communication works like an incredibly fast Morse code made of light you can't see. Every time you press a button on a remote control, it flashes an LED that emits infrared light—light that exists just beyond the red end of the visible spectrum. This light carries a digital message, a precise pattern of on-off pulses that represents the button you pressed.
Think of it like sending messages with a flashlight, except the light is invisible and the messages are transmitted thousands of times per second. Each button on your remote has its own unique pattern, like a secret handshake that only compatible devices understand. The remote might flash 32 times in a specific rhythm to represent the number '1' button, or use a completely different pattern for the power button.
The receiving device—in our case, an IR receiver connected to your HERO Board—acts like a specialized translator. It watches for these infrared flashes, times the intervals between them, and converts the light patterns back into digital codes that your microcontroller can understand. This process happens so fast that the delay between pressing a button and seeing a response is barely perceptible.
What makes infrared perfect for stealth applications is its limitations. IR light doesn't pass through walls, travels in straight lines, and has a limited range. These aren't bugs—they're features. Your signals won't interfere with neighboring systems, and someone would need direct line of sight to intercept your commands. In a world where staying hidden matters, these constraints become advantages.

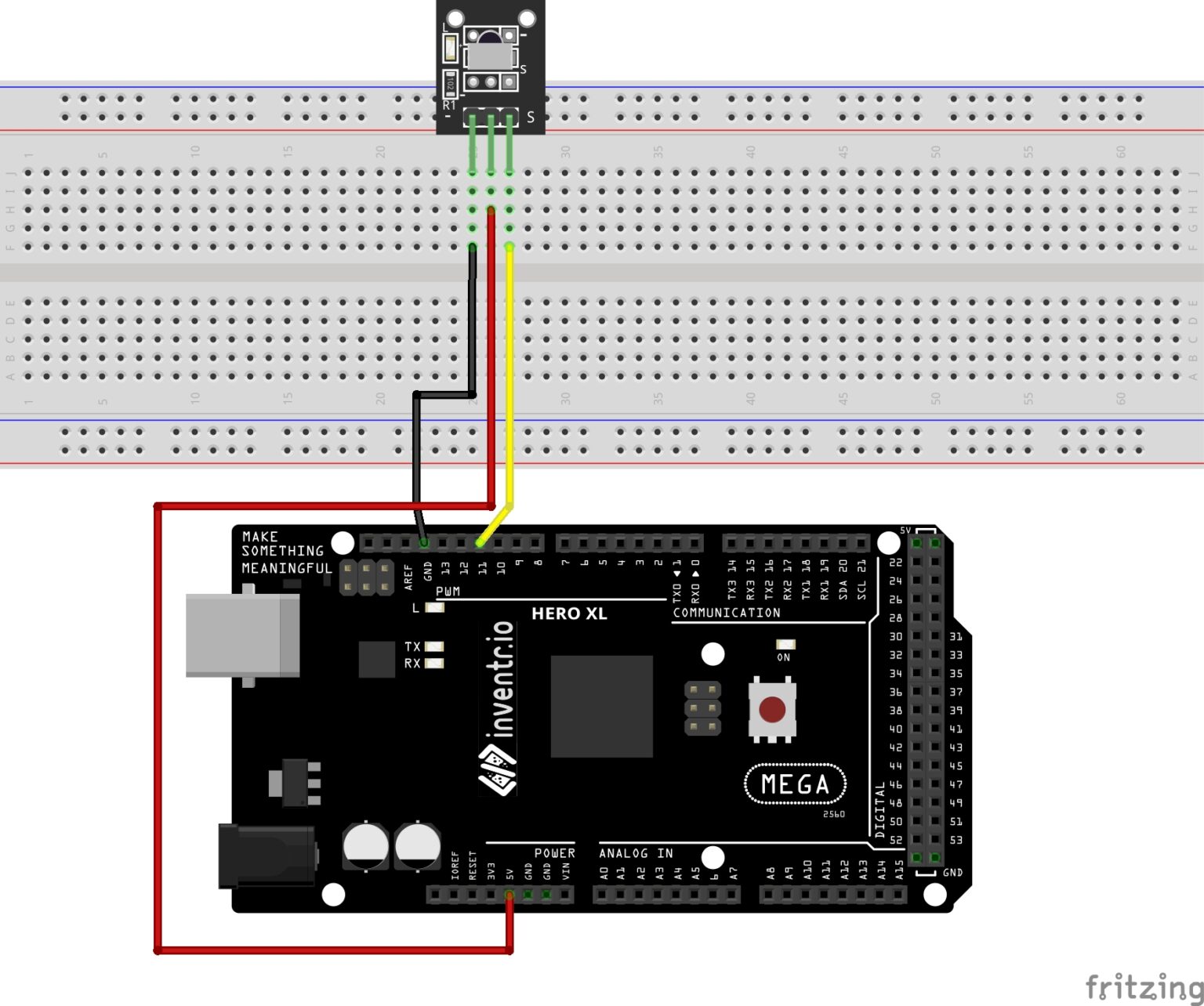

Wiring Your Invisible Eye
The IR receiver is your electronic sentinel, designed to catch infrared signals and convert them into electrical signals your HERO Board can process. This three-pin device needs power, ground, and a data connection.
- Power (VCC to 5V): The receiver needs clean, stable power to amplify weak infrared signals. The 5V rail provides enough voltage for the internal amplification circuits.
- Ground (GND to GND):
