What You'll Learn
When you finish this mission, you'll be able to:
- Control a stepper motor with precise degree-by-degree movement for targeting systems
- Read analog joystick inputs and translate them into directional commands
- Generate dynamic RGB color patterns that change continuously over time
- Understand PWM channel configuration on ESP32-based boards like the T-Display
- Implement real-time control systems that respond instantly to user input
- Build a complete remote-controlled device with multiple integrated systems
Understanding the Light Turret System
Think of this project as building a remote-controlled spotlight that can aim precisely and change colors rapidly. Just like a security camera can pan left and right to track movement, our turret uses a stepper motor to rotate with pinpoint accuracy. The difference is that instead of recording video, we're firing bursts of colored light.
The stepper motor is the muscle of our system. Unlike regular motors that just spin freely, steppers move in exact increments. Imagine a clock's second hand, but instead of 60 positions per minute, our stepper can hit 2038 precise positions per full rotation. This gives us surgical precision when aiming at targets.
The RGB LED is our weapon. By rapidly cycling through different color combinations, we create a chaotic light pattern that can overwhelm optical sensors. It's like shining a strobe light directly into a camera lens, except we can control exactly what colors flash and how fast they change.
The joystick serves as our targeting computer. Push left, turret rotates left. Push right, it goes right. Press the trigger button, and our light weapon fires. Simple human interface controlling complex robotic systems.
What makes this challenging is that we're using a T-Display board, which handles PWM differently than our standard HERO Board. Instead of simple analogWrite commands, we need to set up dedicated PWM channels with specific frequencies and resolutions. It's like the difference between a basic light dimmer and a professional stage lighting controller.
Component Arsenal
Your light turret requires several key components working in perfect coordination:
Stepper Motor & ULN2003 Driver
The precision targeting system. The stepper motor provides exact rotational control, while the ULN2003 driver board amplifies the microcontroller's signals to power the motor's coils.
Analog Joystick
Your targeting interface. The X-axis controls turret rotation, while the push-button trigger activates the light weapon. The joystick outputs analog values from 0 to 4095, with center position around 2000.
RGB LED
Your light weapon. Three separate LEDs (red, green, blue) combine to create millions of possible colors. By rapidly changing the intensity of each color, we create the disorienting light patterns.

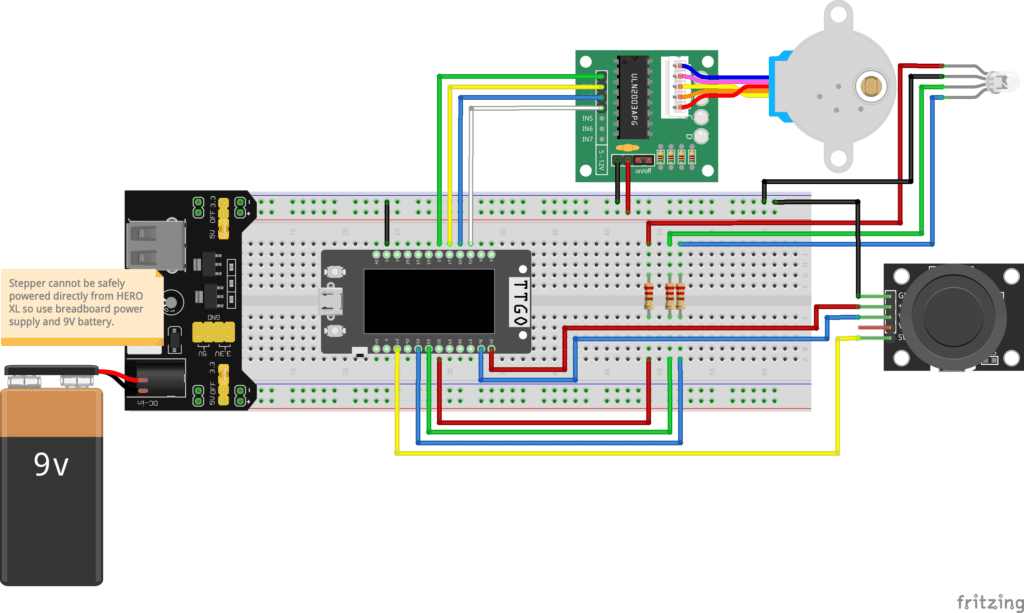

Wiring Your Light Turret
This wiring setup creates multiple control systems that must work together seamlessly. Each connection serves a specific purpose in our targeting and firing system.
