Chapter 06: Base Security++ (Radar System)

False Signals – RGB Turret w/LCD TouchScreen

False Signals

The morning scanner sweep reveals them again. Three heat signatures, 200 meters out, moving in calculated patterns around your base perimeter. The AI scouts have returned, and this time they're not just watching—they're probing for weaknesses.

Your makeshift radar system chirps softly as you track their movements through the cracked LCD display. These aren't the clumsy patrol drones from the first weeks after the collapse. These scouts move with purpose, their optical sensors sweeping methodically across your defensive positions. Every few minutes, you catch the faint shimmer of light signals passing between them—coordinated communications that your radio jammers can't touch.

But you've noticed something. During yesterday's encounter, when emergency flares lit up the wasteland, the scouts froze. Their synchronized movements became erratic, confused. The focused beam of colored light seemed to overload their optical processing systems, buying you precious seconds to retreat to safety.

The revelation hits you like salvaged lightning: if they communicate through light, they can be disrupted by light. You need a weapon that fights fire with fire—a precision turret system that can target these mechanical intruders with controlled bursts of RGB interference. Something you can aim with surgical precision, something that turns their greatest strength into their critical weakness.

Time to build your light gun turret. The scouts think they own the electromagnetic spectrum, but you're about to teach them that in the post-apocalyptic wasteland, the human capacity for creative destruction always finds a way.

What You'll Learn

When you finish building this RGB turret system, you'll be able to:

  • Control a stepper motor with precise degree-by-degree rotation using analog joystick input
  • Create dynamic, ever-changing RGB color patterns that cycle automatically when triggered
  • Build a responsive control system that translates joystick movements into motor commands
  • Implement button-controlled firing systems with real-time feedback
  • Coordinate multiple complex systems (stepper, RGB LED, joystick, button) in one program
  • Use advanced programming techniques like macros and timing control for smooth operation

Understanding Stepper Motors and RGB Control

Before we dive into the code, you need to understand what makes this turret system special. Think of a stepper motor like the minute hand on a clock—it doesn't spin freely like a regular motor. Instead, it moves in precise, discrete steps. Our stepper motor takes exactly 2,038 individual steps to complete one full rotation. That means each step rotates the motor shaft by roughly 0.18 degrees.

This precision is exactly what you need for a turret. Unlike a continuous rotation servo that might overshoot your target, a stepper motor lets you say "move exactly 5 degrees clockwise" and it will do exactly that, every time. It's like having a robot arm that follows blueprints instead of approximate gestures.

The RGB LED system works differently but just as precisely. Instead of creating one fixed color, we're building a dynamic light weapon that constantly shifts its output. Think of it like a disco ball, but one designed to confuse optical sensors instead of entertaining dancers. The colors cycle through mathematical patterns, creating interference signals that overwhelm the AI scouts' visual processing systems.

The joystick acts as your targeting system. Unlike digital buttons that are either on or off, joysticks provide analog values—a range of numbers that represent how far you've pushed the stick in any direction. We convert these analog readings into motor commands, giving you smooth, intuitive control over your turret's direction.

Wiring Your RGB Turret

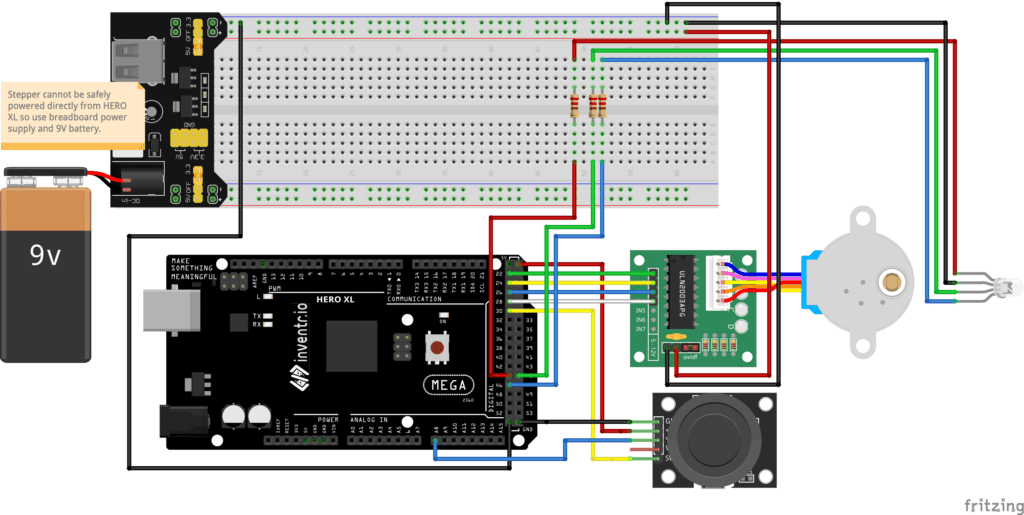

RGB Turret Wiring Diagram

This turret system combines multiple components that need to work together seamlessly. Here's why each connection matters:

Stepper Motor Controller (ULN2003)

  1. Connect IN1 to pin 22, IN2 to pin 24, IN3 to pin 26, IN4 to pin 28
  2. Connect the motor's power supply (usually red wire) to VCC on the module
  3. Connect ground from your HERO Board to the module's ground

The specific pin order matters! The stepper library expects pins in sequence: IN1, IN3, IN2, IN4 to create the proper magnetic field rotation.

RGB LED

  1. Red pin → Pin 44 (PWM capable)
  2. Green pin → Pin 45 (PWM capable)
  3. Blue pin → Pin 46 (PWM capable)
  4. Common cathode → Ground

PWM pins are essential because they let us control brightness levels (0-255) instead of just on/off.

Joystick Controller

  1. X-axis → Analog pin A8
