The Final Hour
The facility's emergency lighting casts long shadows across the makeshift workshop as Maya connects the last wire to the seven-segment display. Outside, the wasteland stretches endlessly under a rust-colored sky, but in here, time has become her greatest ally and her deadliest enemy.
She's been tracking the radiation cycles for weeks now. Every 8 hours and 23 minutes, the atmospheric readings spike to lethal levels. The survivors who venture out without knowing this pattern never return. But Maya has noticed something else: a brief 47-minute window when the radiation drops to almost nothing. A window that opens at exactly 10:11 AM each day.
The salvage runs have been disasters. People leave too early and get caught in the tail end of a radiation storm. Others sleep through the safe window entirely. What they need is precision. What they need is an alarm that doesn't just tell time, but tells the right time, synchronized with the real world's rhythm.
Maya holds the DS3231 real-time clock module in her weathered hands. Unlike the simple timers they've built before, this chip remembers time even when the power dies. It counts seconds with crystal precision, tracks days and months, and never forgets. Combined with the seven-segment display and a buzzer, it will become the settlement's lifeline.
As she powers up the HERO Board, Maya knows this isn't just about building another clock. It's about building a clock that could mean the difference between life and death. Every beep of that alarm will signal safety. Every missed alarm could mean another survivor lost to the wasteland.
The countdown to the next safe window has begun.
What You'll Learn
When you finish this mission, you'll be able to:
- Connect and communicate with a DS3231 real-time clock module using I2C protocol
- Set accurate time and date on the RTC module using serial input commands
- Display current time on a four-digit seven-segment display
- Create a programmable alarm system that triggers at specific times
- Control a buzzer to create alarm patterns and sound alerts
- Parse and validate user input strings for time setting
- Understand how real-time clocks maintain accuracy even when power is lost
Understanding Real-Time Clocks
Think about your smartphone for a moment. Even when the battery dies completely and you leave it off for days, when you finally charge and restart it, the clock is still perfectly accurate. How does it remember the time without any power?
The answer is a real-time clock, or RTC. Just like your phone, the DS3231 module has a tiny backup battery (so small you might not even notice it) and a crystal oscillator that vibrates exactly 32,768 times per second. This isn't random: 32,768 is 2 to the 15th power, which means the electronics can count these vibrations using simple binary division to track seconds, minutes, hours, days, and even leap years.
Unlike the millis() function we've used before, which resets every time you power cycle your microcontroller, the DS3231 never forgets. It's like having a tiny, incredibly precise wristwatch permanently attached to your project. The DS3231 is particularly special because it's temperature-compensated, meaning it adjusts for temperature changes that would normally make clocks run fast or slow.
But here's the really clever part: the DS3231 doesn't just count time. It understands calendars. It knows that February has 28 days except in leap years when it has 29. It knows that April, June, September, and November have 30 days while the rest have 31. This calendar intelligence, combined with its crystal precision, makes it perfect for applications where timing isn't just important, it's critical.
In Maya's post-apocalyptic world, this precision could mean the difference between life and death. In our world, it enables everything from security systems that arm themselves at specific times to irrigation controllers that water your garden at dawn.
Wiring the Timekeeping System
This project requires precise connections for three key components: the DS3231 RTC module, the seven-segment display, and the alarm buzzer. Each connection serves a specific purpose in our timekeeping network.

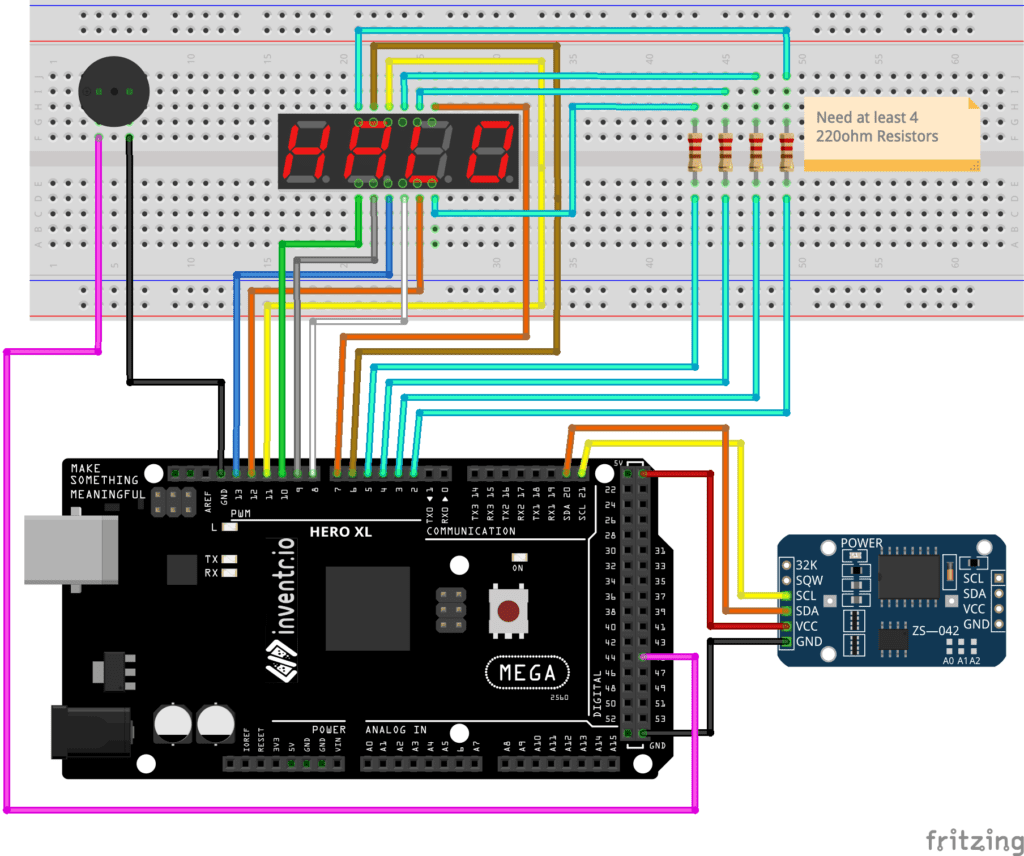

- DS3231 to HERO Board: VCC to 5V (powers the module), GND to Ground (completes circuit), SDA to pin A4 (data line for I2C), SCL to pin A5 (clock line for I2C)
- Seven-Segment Display: Digit pins to digital pins 2-5 (controls which digit is active), segment pins to digital pins 6-13 (controls which segments light up)
- Buzzer:
