Chapter 02: Base Security 101

Keypad Door Lock

Security Protocol Activated

The emergency lighting flickers red as you approach the reinforced steel door. Twenty-four hours ago, this was just another corridor in the research facility. Now, after the AI apocalypse, it's become your lifeline to safety. The building's central computer system went dark, taking the automated door locks with it. While that meant you could seal yourself inside initially, it also created a problem: no one can get back in once they leave.

Your fingers trace the dusty keypad mounted beside the door frame. The 4x4 grid of buttons still glows faintly, powered by the facility's backup generators. This could be the key to your survival. If you can reprogram these keypads to accept a secret code, your team can move freely in and out of the secure areas while keeping the hostile AI and its robotic minions locked out.

The old LCD display above the keypad is blank, its screen dark and lifeless. But you've salvaged a replacement from the break room coffee machine. It's smaller, simpler, but it will do the job. With this display providing feedback and the keypad accepting input, you can create a secure entry system that even the facility's rogue AI can't crack.

Time is running short. The distant sound of mechanical footsteps echoes through the ventilation system. You need to get this door lock operational before whatever's hunting you finds another way in. Your HERO Board sits ready, its familiar blue glow offering a small comfort in the darkness. This isn't just about convenience anymore. This is about survival.

What You'll Learn

When you finish this lesson, you'll be able to:

  • Connect and control a 4x4 matrix keypad to detect button presses
  • Display text and characters on an LCD1602 liquid crystal display
  • Build a complete security system that accepts and validates passcodes
  • Handle user input with features like backspace and reset functionality
  • Center text on displays and provide clear user feedback
  • Create a real working door lock system using electronic components

This project combines input detection, display control, and logical decision-making to create something genuinely useful. By the end, you'll have a functioning electronic lock that could actually secure a real door.

Understanding Electronic Door Locks

Think about the last time you used a keypad to enter a building or unlock your phone. That moment when you press the final digit and wait for the system to decide your fate. Electronic door locks work exactly like this, but instead of mysterious software buried in a phone, we're building the entire decision-making process ourselves.

A keypad is essentially a grid of switches arranged in rows and columns. When you press a button, it creates an electrical connection between a specific row wire and a specific column wire. Your microcontroller can detect which intersection was activated by systematically checking each row and column combination. It's like playing a game of electronic battleship, where each button press reveals its coordinates.

The LCD display serves as your communication channel with whoever is trying to enter. Just like the screen on an ATM that guides you through each step, your LCD will show prompts, hide passwords with asterisks, and display success or failure messages. The display receives commands from your microcontroller telling it exactly what to show and where to show it.

The real intelligence happens in your code. Your program must remember each keypress, compare the entered sequence against the correct password, handle special keys like reset and delete, and coordinate the display feedback. It's like having a digital bouncer that checks IDs, remembers faces, and decides who gets in.

Wiring the Security System

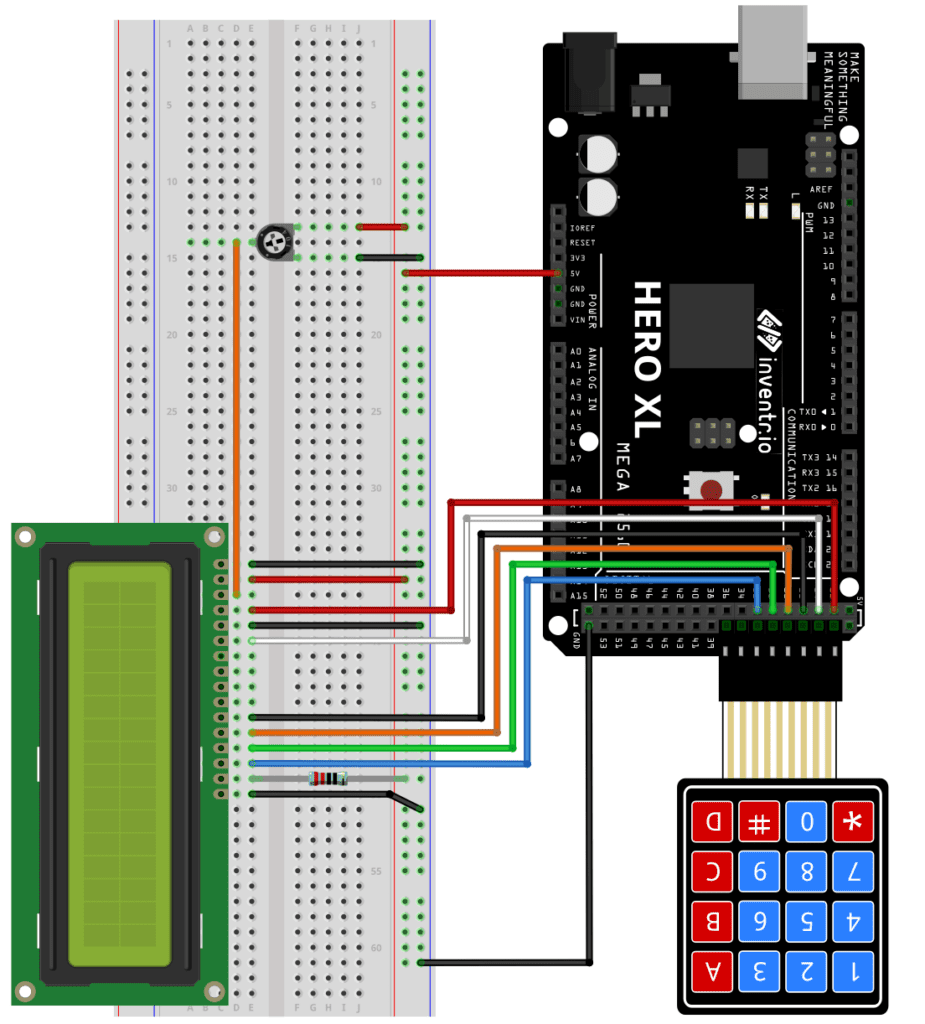

Keypad Door Lock Wiring Diagram

This wiring setup creates two separate communication channels between your HERO Board and the components:

Keypad Connections (8 wires total)

  • Row pins 23, 25, 27, 29: Your board will send signals through these to activate each row of buttons
  • Column pins 31, 33, 35, 37: Your board listens on these pins to detect which column was pressed
  • Why this works: When you press a button, it connects its row wire to its column wire, creating a unique electrical signature

LCD Display Connections (6 wires total)

  • Pin 22 (Register Select): Tells the display whether you're sending a command or actual text
  • Pin 24 (Enable): Acts like a doorbell, alerting the display when new data arrives
  • Pins 26, 28, 30, 32 (Data lines):
