The Emergency Signal Protocol
The dim corridors of Cogsworth City's maintenance sector hummed with the steady rhythm of distant machinery. Emergency Technician Riley Chen moved through the shadows, her breath forming small clouds in the cold air as she approached the central safety station. The recent power fluctuations had everyone on edge, and the old manual alarm systems weren't cutting it anymore.
"We need something smarter," Chief Engineer Martinez had told her during the morning briefing. "Something that only responds when it's actually needed, not every time someone accidentally bumps into a button." The city's safety protocols demanded a new approach: multi-sensor verification systems that could distinguish between false alarms and genuine emergencies.
Riley's fingers traced the cold metal surface of the prototype safety console. Two emergency buttons, gleaming red in the dim light. A conductive touch sensor, waiting to detect human contact. And most importantly, an ambient light sensor that could adjust the emergency beacon's brightness based on current conditions. No more blinding lights in broad daylight, no more dim signals in the darkness.
As she powered up the system, Riley knew this wasn't just about building another gadget. This was about creating a guardian system that would keep Cogsworth City's citizens safe when seconds counted most. The emergency protocol would require two deliberate actions: pressing a button AND making physical contact with the touch sensor. No accidents. No false alarms. Just reliable, intelligent protection.
What You'll Learn
When you finish building this emergency safety system, you'll be able to:
• Create multi-condition logic that requires multiple sensors to trigger simultaneously
• Use the map function to convert sensor readings into usable output values
• Build a touch-sensitive safety system that prevents accidental activation
• Control LED brightness dynamically based on environmental light conditions
• Design fail-safe systems that only activate when specific conditions are met
Understanding Smart Safety Systems
Think about the safety systems you encounter every day. Your car won't start unless you're pressing the brake pedal AND the key is turned. Modern elevators won't move unless the doors are completely closed AND no one is blocking the sensors. ATMs require both your card AND your PIN. These aren't coincidences; they're examples of multi-condition safety logic.
The principle is simple but powerful: require multiple deliberate actions to prevent accidents. A single button press might happen by mistake, but pressing a button while simultaneously touching a sensor? That's intentional. This is exactly what we're building today.
Our safety system combines four different types of sensors. Digital inputs (buttons) provide binary on/off signals. A conductive touch sensor detects human contact. An analog sensor (photoresistor) measures light levels continuously. And digital outputs (LEDs) provide visual feedback. The magic happens when these components work together, creating a system that's both responsive and safe.
But here's where it gets interesting: our system doesn't just turn lights on and off. It adapts. In bright conditions, the emergency beacon shines brightly to cut through ambient light. In darkness, it dims to avoid overwhelming anyone's vision while still providing clear indication. This adaptive behavior transforms a simple on/off switch into an intelligent response system.
Wiring Your Safety System

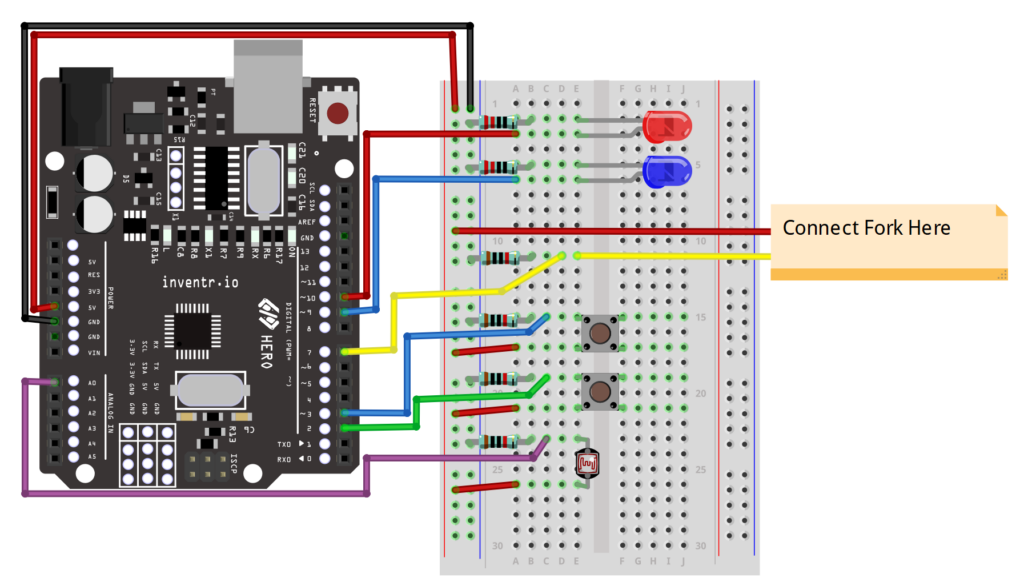

This wiring creates multiple input pathways that must all work together. Each connection serves a specific safety purpose.

- First Button → Pin 2: Primary emergency trigger. Digital pin 2 has built-in interrupt capability for responsive input detection.
- Second Button → Pin 3: Secondary emergency trigger. Pin 3 also supports interrupts, ensuring both buttons have equal priority.
- Fork Sensor → Pin 7: Touch verification sensor. This creates the "human presence" requirement that prevents accidental activation.
- Photoresistor → Pin A0: Light level detector. Analog pin A0 reads the full range of light values, not just on/off.
- First LED → Pin 9: Emergency beacon one. Pin 9 supports PWM, allowing variable brightness control.
- Second LED → Pin 10: Emergency beacon two. Pin 10 also supports PWM for matched brightness adjustment.
Test each sensor individually before connecting everything. This makes troubleshooting much easier if something doesn't work as expected.
