The Trial of Lights and Buttons
The maintenance tunnel beneath Cogsworth City stretches endlessly in both directions, dimly lit by emergency strips that cast long shadows on the corroded walls. Your footsteps echo against metal grating as you follow the schematic display on your HERO Board, its screen the only reliable light source in this forgotten corner of the city.
Chief Engineer Morrison's voice crackles through the comm: "The control station you're approaching is critical to the city's power grid. Two independent circuits, two manual overrides. But here's the thing, cadet—those switches don't behave like normal buttons. Press once, they stay on. Press again, they turn off. The old engineers called it 'toggle behavior,' and right now it's the only thing standing between us and a total blackout."
You pause at a junction where two massive conduits disappear into the darkness above. The control panel before you houses two weathered buttons and two status LEDs, their red glow pulsing weakly. The city's fate hangs on your understanding of how these circuits communicate with each other. One button controls the eastern district's power relay. The other governs the industrial sector. Both must work independently, but share the same control logic.
This isn't just about turning lights on and off anymore. You're about to learn the fundamental principle that governs nearly every interactive device in Cogsworth City: state management. The ability to remember what happened before, to toggle between conditions, to maintain control even when the user isn't actively pressing buttons. Master this, and you'll understand the beating heart of responsive electronics.
What You'll Learn
When you complete this lesson, you'll be able to:
Build circuits where buttons toggle LEDs on and off with each press, just like light switches in your house. You'll understand how to make your microcontroller remember the current state of each LED and respond intelligently to button presses. This means creating truly interactive devices that behave predictably and intuitively.
Wire multiple independent button-LED pairs that work simultaneously without interfering with each other. Connect two buttons to control two LEDs separately, understanding how digital pins communicate with both input devices (buttons) and output devices (LEDs).
Program state management logic that tracks button presses and LED conditions over time. You'll learn to store information in variables, compare current states with previous states, and make decisions based on that comparison. This is the foundation of all interactive electronics.
Understanding Toggle Behavior
Think about the light switch in your bedroom. Press it once, the light turns on. Press it again, the light turns off. Press it a third time, it's back on. This isn't magic—it's toggle behavior, and it's everywhere in the electronic world around you.
Your TV remote's power button works this way. Your computer's caps lock key. Even the flashlight app on your phone. These devices all share a crucial characteristic: they remember their current state and switch to the opposite state when activated. This memory is what separates smart electronics from simple on/off switches.
But here's where it gets interesting. Your microcontroller runs its main program thousands of times per second, checking button states continuously. Without proper logic, a single button press might register as dozens of presses, causing your LED to flicker rapidly instead of toggling cleanly. This is where state management becomes essential.
The secret lies in comparing three pieces of information: what the button is doing right now, what it was doing a moment ago, and what state the LED should be in. By tracking these variables and only acting when the button changes from "not pressed" to "pressed," we create the smooth, predictable toggle behavior that users expect. This principle governs everything from simple room lighting to the complex control systems managing Cogsworth City's infrastructure.

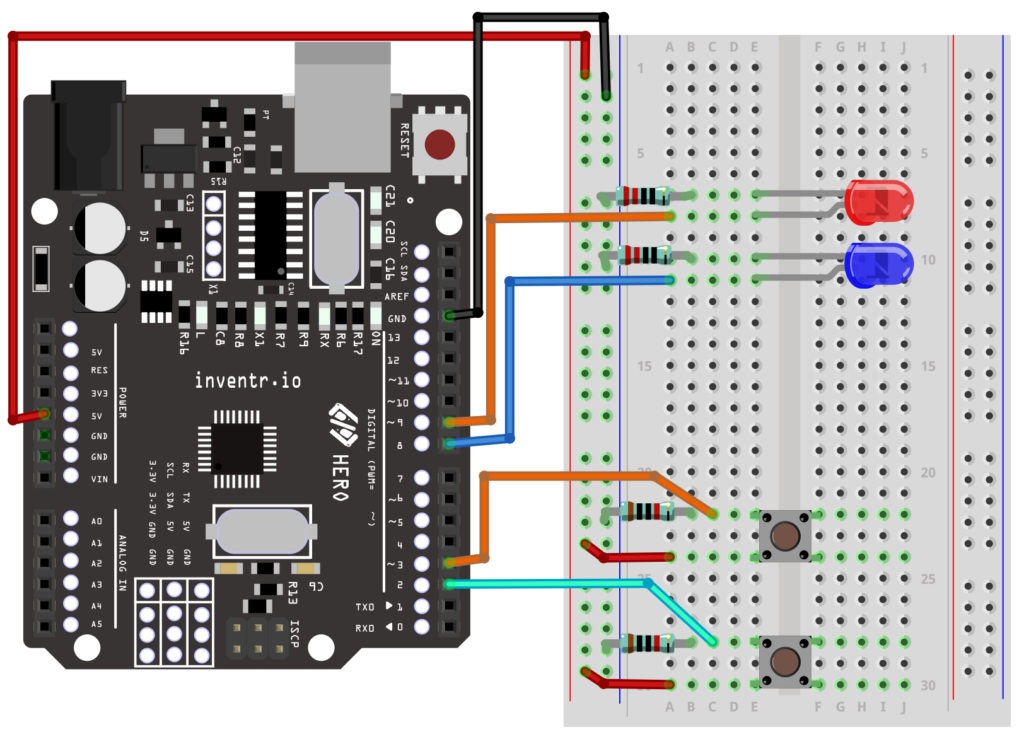

Wiring Your Control Station
- Button 1 to Pin 2: This creates your first input channel. Pin 2 is a digital input that can detect whether the button is pressed (HIGH) or released (LOW).
- Button 2 to Pin 3: Your second independent input channel. Each button needs its own digital pin so the microcontroller can read them separately.
- LED 1 to Pin 8: Connect the positive leg (longer wire) to pin 8, negative leg to ground through a 220-ohm resistor. Pin 8 becomes a digital output that controls current flow.
- LED 2 to Pin 9:
