The Button Chronicles
The Cogsworth City maintenance tunnels hum with electronic heartbeats. Pipes carrying data pulse overhead while you navigate the narrow passages beneath the great clockwork metropolis. Your HERO Board flickers to life in the dim underground light, casting shadows on brass-plated walls lined with Victorian-era wiring conduits.
Today's mission briefing arrived through the pneumatic tube system at dawn. The city's automated systems require manual override capabilities for emergency scenarios. The Chief Engineer's message was clear: "Citizens must be able to interact with our electronic guardians. We need buttons that can command our mechanical servants."
You trace your fingers along the copper contacts of a simple pushbutton switch. Such an ordinary device, yet it holds the power to bridge the gap between human intention and machine action. In the great clockwork city, every gear serves a purpose, every lever has meaning. Today, you'll learn how this humble button can become the conductor's baton that orchestrates electronic symphonies.
The gas lamps flicker as you prepare your workspace. Steam rises from the heating vents while you examine your components: one simple button, one glowing LED, and the promise that by day's end, you'll understand how human touch can command the electric servants of Cogsworth City.
What You'll Learn
When you finish this lesson, you'll be able to:
- Connect a pushbutton to your HERO Board and understand why each wire goes where it does
- Write code that detects when someone presses a button and responds accordingly
- Control an LED based on button input, creating your first interactive electronic system
- Understand how digital inputs work and why they're the foundation of user interfaces
- Debug common button wiring mistakes and troubleshoot connection issues
This is your first step into interactive electronics. Every smartphone, video game controller, and smart home device uses the same fundamental principles you'll master today.
Understanding Buttons and Digital Input
A pushbutton is like a drawbridge over a river of electricity. When the button is pressed, the drawbridge lowers and electricity can flow across. When released, the drawbridge lifts and the electrical path is broken. Your microcontroller sits on the bank of this river, constantly checking whether the bridge is up or down.
But here's where it gets interesting. Your HERO Board doesn't think in terms of "pressed" or "not pressed." It thinks in terms of voltage levels. When electricity flows through a circuit, the microcontroller reads this as "HIGH" (about 5 volts). When no electricity flows, it reads "LOW" (0 volts). These two states, HIGH and LOW, are the foundation of all digital communication.
Think of it like a light switch in your house. The switch doesn't create electricity, it just controls whether electricity can flow to the bulb. Similarly, your button doesn't generate signals, it controls whether your microcontroller can detect a HIGH or LOW state. This simple on-off concept powers everything from your smartphone's touch screen to the International Space Station's control panels.
The magic happens when we connect this physical button press to digital logic. Your code will continuously ask: "Is there voltage on pin 2?" Based on the answer, it makes decisions. Press the button, voltage appears, LED turns on. Release the button, voltage disappears, LED turns off. You're creating a conversation between the physical and digital worlds.

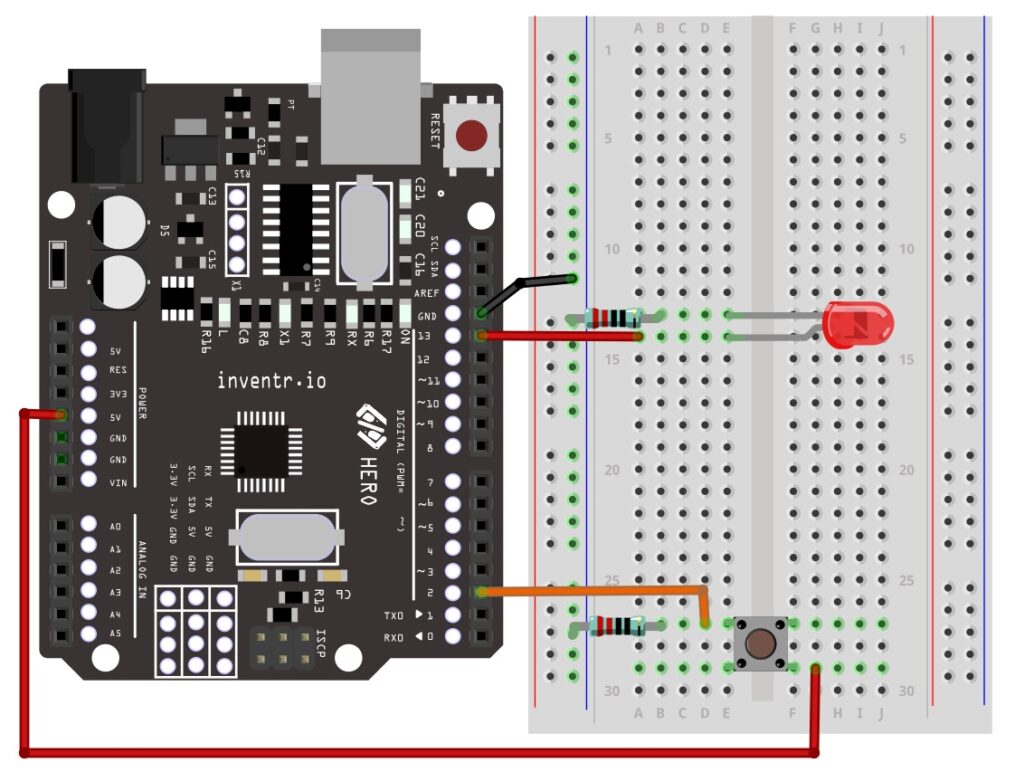

Wiring Your Button Circuit
- Button to Pin 2: Connect one leg of your pushbutton to digital pin 2. This creates the input pathway where your microcontroller will "listen" for button presses.
- Button to Ground: Connect the other leg of your pushbutton to a ground (GND) pin. This completes the circuit and gives electricity a path to follow.
- LED Long Leg to Pin 13: Connect the longer leg (positive/anode) of your LED to digital pin 13. This is where your microcontroller will send the "turn on" signal.
- LED Short Leg to Ground: Connect the shorter leg (negative/cathode) of your LED to another ground pin. This completes the LED circuit.
Why does this wiring work? When you press the button, you create a direct connection between pin 2 and ground. Your microcontroller detects this as a LOW signal (0 volts) because electricity flows from pin 2 to ground through the button. When you release the button, pin 2 "floats" and the microcontroller's internal circuitry pulls it HIGH (5 volts).
