Chapter 6: Space Defense

Day 29: Landing Gear Part 2

Video lesson · 35 min

The mother ship is in sight. Build the final docking navigation system — combine servos, switches, OLED display, and all previous systems for the precision approach to the docking bay. Master multi-system integration and real-time control.

Mission Control crackles to life in the dim emergency lighting. Red warning indicators pulse across every console, casting eerie shadows on the faces of the skeleton crew that remains. After 29 days drifting through the void, today is the day. The mother ship has appeared on long-range sensors, growing larger with each passing hour.

Your damaged exploration lander shudders as you fire the attitude thrusters one final time. The docking bay of the massive mother ship looms ahead, a tiny rectangle of salvation in the endless black. But this isn't just about flying in a straight line. Your navigation systems are compromised, the targeting computer is offline, and the mother ship's gravitational field is causing unpredictable drift patterns.

The approach must be perfect. Too fast and you'll crash through the bay doors, destroying both vessels. Too slow and you'll run out of fuel before reaching safety. Miss the target entirely and you'll drift past into the void, never to return. And there's one more critical detail that separates survival from catastrophe: the landing gear must be deployed before touchdown, or the impact will tear your lander apart.

Your hands hover over the control matrix. Every button press could mean the difference between a hero's welcome and a funeral in space. The distance counter shows 1,394 units and falling. Time to bring your crew home.

Mission Objectives

When you complete this critical approach sequence, you'll have mastered the art of precision spacecraft control. You'll understand how to manage multiple simultaneous inputs, coordinate complex state machines, and build fail-safe systems that prevent catastrophic failures.

More specifically, you'll control thrust vectoring with button matrix inputs, manage landing gear deployment sequences, implement radar tracking systems, and handle real-time collision detection. Your lander's survival depends on perfect coordination between speed control, directional steering, gear deployment timing, and target acquisition.

The Physics of Spacecraft Docking

Imagine trying to thread a needle while riding a motorcycle in a thunderstorm. That's essentially what spacecraft docking involves, except the "needle" is moving, the "motorcycle" has momentum in three dimensions, and there's no air to help you slow down.

In space, every action creates an equal and opposite reaction. Fire your thrusters to move left, and you also push yourself slightly backward. Try to correct your course, and you might overshoot in another direction. Real spacecraft use attitude control systems with dozens of micro-thrusters, but your damaged lander has only basic directional control.

The landing gear adds another layer of complexity. Deploy it too early and the extra drag will throw off your calculations. Deploy it too late and there's no time for the mechanical systems to extend before impact. Professional astronauts train for years to master these split-second decisions, but you've got one shot to get it right.

Final Mission Wiring

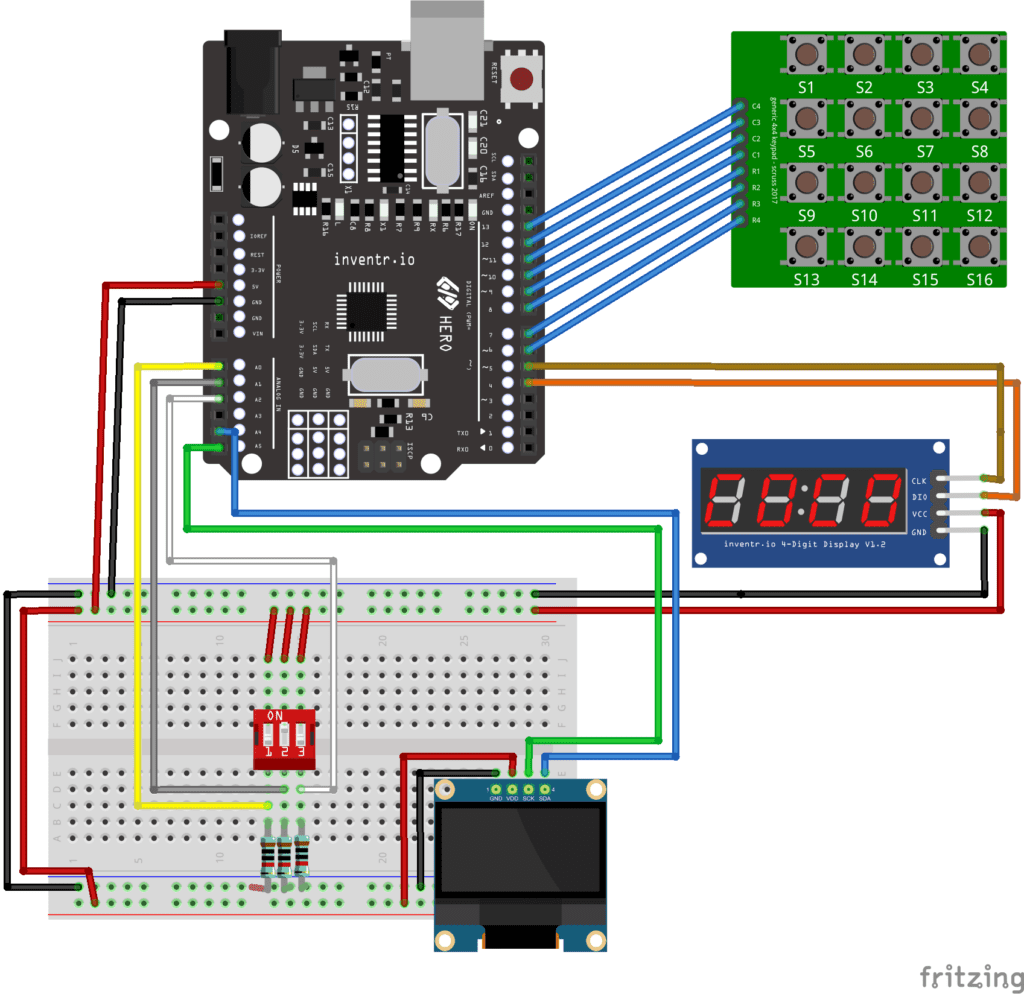

Complete lander control system wiring diagram

This is your complete lander control system. Every connection serves a critical purpose in the final approach sequence:

  1. Button Matrix (4x4): Your primary flight controls. Connected to digital pins 6-13 for row and column scanning. Each button press sends thruster commands to your damaged lander.
  2. OLED Display: Your radar screen and system status display. Connected via I2C (SDA/SCL) to show real-time approach data, target tracking, and landing gear status.
  3. 4-Digit Display: Distance counter showing meters to the mother ship. Connected to pins 4 (DIO) and 5 (CLK) for critical range information.
  4. DIP Switches: System enablement switches connected to analog pins A0, A1, A2. All must be activated in sequence to begin the approach.
Critical Warning

Double-check all connections before powering up. A loose wire during final approach could mean the difference between rescue and disaster.

Control Matrix Layout

Your button matrix becomes the flight stick for your lander. Each button controls a specific thruster or system, mapped like a professional spacecraft control panel:

Control Layout:

 UL |  U | UR | GD
-----------------
  L |    |  R | GU
-----------------
 DL |  D | DR | T+
-----------------
    |    |    | T-

UL/UR/DL/DR = Diagonal thrusters
U/D/L/R = Primary directional control
GD/GU = Gear Down/Gear Up
T+/T- = Thrust increase/decrease
