Day 27: HERO_AUTOPILOT.EXE Part 2

Mission Control Interface

The control panel flickers to life. Commander, you're standing in the lander's cramped mission control station, surrounded by banks of switches and displays that could mean the difference between landing safely and becoming another crater on this hostile planet's surface.

Your fingers hover over three DIP switches, each one controlling a critical system visualization. The OLED tactical display shows different schematics based on your switch configuration. Switch pattern 000? Life support diagnostics. Pattern 101? Navigation systems. Each combination reveals different mission-critical information that your crew needs to survive the final approach.

But here's the challenge: you need to understand how these switches translate into the binary language your ship's computer speaks. Three switches can create eight different combinations, and your survival depends on reading them correctly. The 7-segment display shows which pattern is currently active, but you need to build the interface that makes it all work together.

This isn't just about displaying pretty pictures. This is about creating a responsive control interface that could handle anything from system diagnostics to emergency protocols. Every switch position matters. Every bitmap tells a story. And your code is what makes the magic happen when flesh meets metal and binary becomes reality.

What You'll Learn

When you finish this lesson, you'll be able to:

• Use DIP switches to create binary input patterns from 0-7
• Display different bitmap images based on switch combinations
• Organize code using include files to keep projects manageable
• Calculate display positioning for centered graphics
• Combine multiple displays (OLED and 7-segment) in one project
• Convert physical switch states into array indices
• Use bitwise operations to build multi-bit values

Understanding Binary Switch Control

Think of DIP switches as a secret code wheel. Each switch position represents a binary digit: ON equals 1, OFF equals 0. With three switches, you can create eight unique combinations, just like having eight different keys to unlock eight different doors.

In the real world, this concept powers everything from garage door openers (which use DIP switches to prevent interference between neighbors) to industrial control systems where operators need to select different operating modes quickly and reliably.

The beauty of binary input is its simplicity and reliability. Unlike complex menus or touchscreens that can fail, physical switches give you immediate, tactile feedback. Fighter jets use similar systems for critical functions because when you're pulling 6 Gs, you need controls that work every time without looking.

Your project combines this proven interface concept with modern display technology. The switches provide the input, your microcontroller processes the binary pattern, and the displays show the results. It's like building a mini version of the control panels that run power plants, manufacturing lines, and yes, spacecraft.

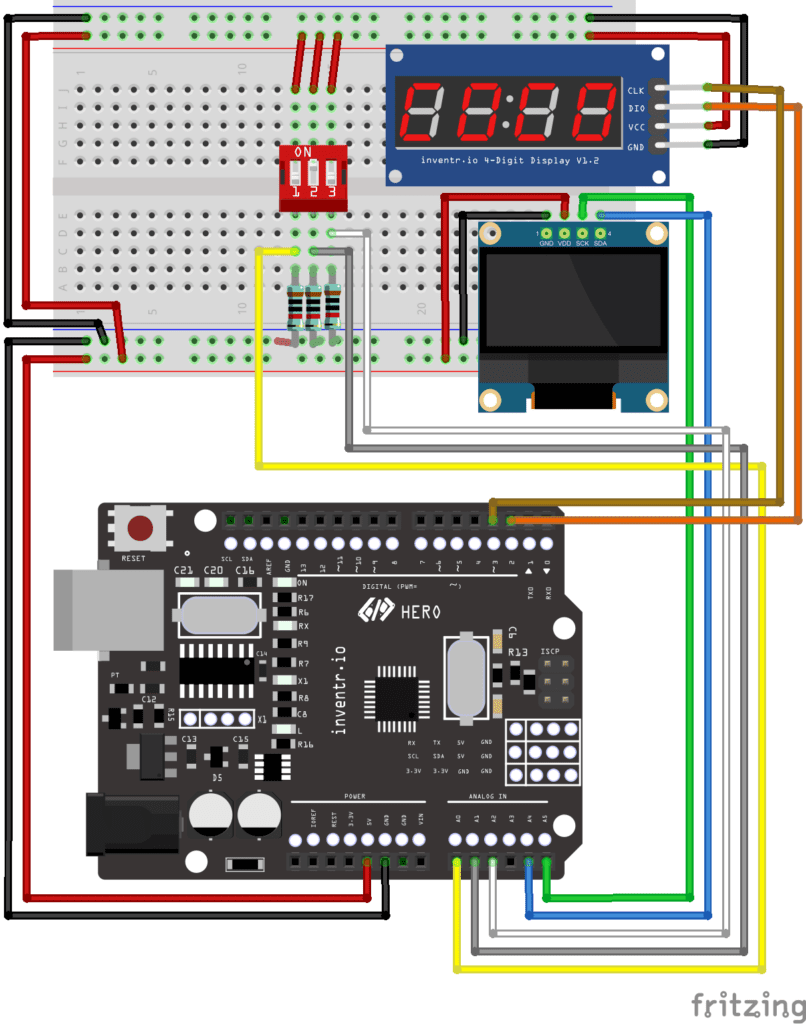

Complete Mission Control Code

Here's the complete code for your bitmap control system. Copy this entire program, then we'll break down how each section works:
