Chapter 5: Launch Panel

Day 23: Launch System

Video lesson · 40 min

Build the launch control system. Wire both a 7-segment countdown display and an OLED status screen working together. Learn to coordinate multiple display devices — TM1637 on digital pins and OLED over I2C — for a complete launch interface.

Wiring the Launch Control System

Your launch system requires two display devices working in harmony. The seven-segment display connects through simple digital pins because it only needs to send data in one direction. The OLED display uses I2C communication, which allows multiple devices to share the same two data wires through addressing.

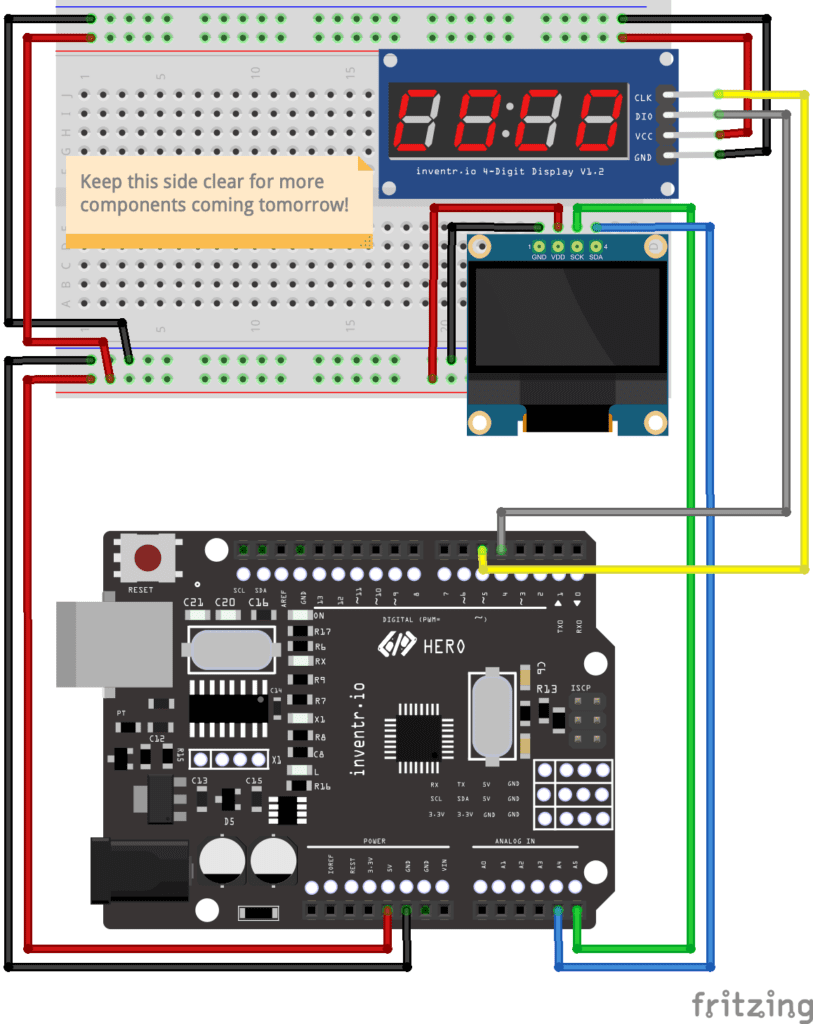

  1. Seven-Segment Display: CLK to pin 5, DIO to pin 4. These pins bit-bang the TM1637 protocol, sending data one bit at a time with precise timing.
  2. OLED Display: SDA to A4, SCL to A5. These are the board's dedicated I2C pins that handle the more complex communication protocol automatically.
  3. Power connections: Both displays need 5V and ground. The seven-segment display draws more current during bright operation, while the OLED uses more power when displaying white pixels.
Circuit Insight

The different communication protocols mean your program can update both displays without timing conflicts. The seven-segment display responds immediately to commands, while the I2C protocol handles the OLED communication with built-in error checking.

Launch System Activation

The blast doors seal with a pneumatic hiss, and the countdown chamber fills with the steady thrum of ventilation systems cycling breathable atmosphere. Through the reinforced viewport, you can see the launch platform bathed in harsh xenon work lights, casting long shadows across the scarred metal deck plating.

Your hands move across the control interface with practiced efficiency, fingers dancing over the familiar constellation of switches and displays. The exploration lander sits poised on the launch rails, its heat-resistant ceramic tiles gleaming dull white under the spotlights. This isn't just another routine systems check. After 23 days drifting through the void, watching resources dwindle and hope fade, this launch represents something more precious than fuel or supplies.

It represents a chance to find home.

The OLED status display flickers to life, its crisp pixels rendering system diagnostics in stark blue-white text. Below it, the seven-segment countdown timer awaits your command, ready to tick down the final moments before launch. But first, the preflight sequence. Every sensor must report nominal. Every thruster must achieve proper alignment. Every system must sing in perfect electronic harmony.

Because in space, there are no second chances. The lander must work flawlessly, or it becomes another piece of debris spinning endlessly through the cosmos. You take a deep breath, tasting the recycled air's metallic edge, and begin the launch sequence that could save your crew from becoming permanent residents of the deep black.

What You'll Learn

When you finish this lesson, you'll be able to create sophisticated countdown systems that coordinate multiple displays simultaneously. You'll master the art of graphics programming on OLED screens, learning to draw custom shapes and manage memory-efficient display updates. Most importantly, you'll understand how to build systems that track time without blocking other operations, a critical skill for any real-world embedded project.

You'll discover advanced programming techniques like macro functions that execute faster than regular functions, memory-efficient graphics buffering, and how to create professional-looking user interfaces on tiny screens. By the end, your launch system will display a live countdown on both a seven-segment display and an OLED screen, complete with custom graphics and status messages.

Understanding Launch System Design

Real spacecraft launch systems are marvels of redundant engineering, where multiple displays show the same critical information in different ways. Think of Mission Control during a NASA launch: countdown clocks on every wall, computer screens showing telemetry data, and backup systems ready to take over if the primary systems fail. Your microcontroller project mirrors this approach by using both a seven-segment display for the countdown and an OLED screen for detailed status information.

The countdown timer serves as your mission clock, much like the giant displays at Kennedy Space Center that everyone watches during launches. But unlike those massive LED arrays, your seven-segment display must show time in a compact MM:SS format, requiring mathematical conversion from milliseconds to human-readable minutes and seconds.
