Chapter 5: Launch Panel

Day 22: Display Panel Details

Video lesson · 35 min

Master the OLED display with advanced graphics. Run diagnostic sequences, draw geometric shapes with pixel precision, render text at different sizes, and create smooth animations. Build the visual interface for your launch control system.

Day 22: Keypad Input

🔌

Wiring Diagram

Replace this with your circuit diagram image

Mission Objectives

When you complete this diagnostic sequence, you'll have mastered the visual systems that could save your life. Specifically, you'll be able to:

• Execute comprehensive hardware testing protocols for OLED displays using automated diagnostic sequences

• Command your display to render geometric primitives including filled and outlined rectangles, circles, triangles, and lines with pixel-perfect precision

• Implement smooth animations by manipulating shape positions across multiple display frames

• Deploy bitmap graphics to display complex images and symbols that transcend simple text limitations

• Apply advanced drawing modes including transparent overlays and XOR operations for sophisticated visual effects

• Leverage bitwise operations and switch-case logic to efficiently manage complex display sequences

These aren't just academic exercises. Every drawing function you master today becomes a tool for survival—whether displaying navigation charts, system diagnostics, or critical warnings during your escape from this alien ocean.

The Graphics Advantage

Picture yourself trying to land a damaged spacecraft using only text instructions. "Altitude: 1,247 meters. Velocity: 23.7 m/s. Warning: Terrain rough." Your brain struggles to process these numbers while simultaneously controlling thrusters, monitoring fuel, and avoiding obstacles. You're flying blind with data you can't quickly visualize.

Now imagine the same scenario with graphics: a simple line graph showing your descent rate, filled circles representing proximity sensors, animated arrows pointing toward safe landing zones. Your brain instantly processes this visual information, leaving cognitive resources free for piloting. This is why mission control centers use massive wall displays instead of text terminals.

Your OLED display operates like a miniature mission control screen. Each of its 8,192 pixels (128 × 64) can be individually controlled, creating everything from simple warning lights to complex diagnostic charts. Unlike character displays that show predefined symbols, bitmap displays give you complete artistic freedom. Want to show a fuel gauge? Draw a rectangle that fills based on tank levels. Need to indicate direction? Render arrows that rotate based on sensor data.

The key insight is that computers excel at drawing simple shapes repeatedly with mathematical precision. A circle is just pixels arranged according to the equation x² + y² = r². A moving animation is the same shape drawn at slightly different coordinates across multiple frames. Your microcontroller can calculate these positions hundreds of times per second, creating smooth, responsive visual feedback that keeps pace with rapidly changing conditions.

Today's diagnostic sequence proves your display can handle this computational workload. You'll stress-test its ability to render shapes, animate movement, display complex bitmaps, and combine multiple visual elements simultaneously. Consider it a pilot's pre-flight check for the visual systems that will guide you through the darkness ahead.

No Wiring Changes Required

Your OLED display remains connected exactly as configured on Day 21. The same four connections that enabled text display now provide full graphical capability:

  1. VCC → 3.3V power rail (provides clean, stable power for pixel operations)
  2. GND → Ground rail (completes the electrical circuit)
  3. SCL → Pin A5 (clock signal for I2C data synchronization)
  4. SDA → Pin A4 (data line carrying drawing commands and pixel information)

The beauty of bitmap displays lies in software, not hardware. The same electrical connections that transmitted character codes now carry coordinates, colors, and drawing commands. Your HERO board sends mathematical descriptions of shapes through the I2C protocol, and the display's internal controller converts these into illuminated pixels.

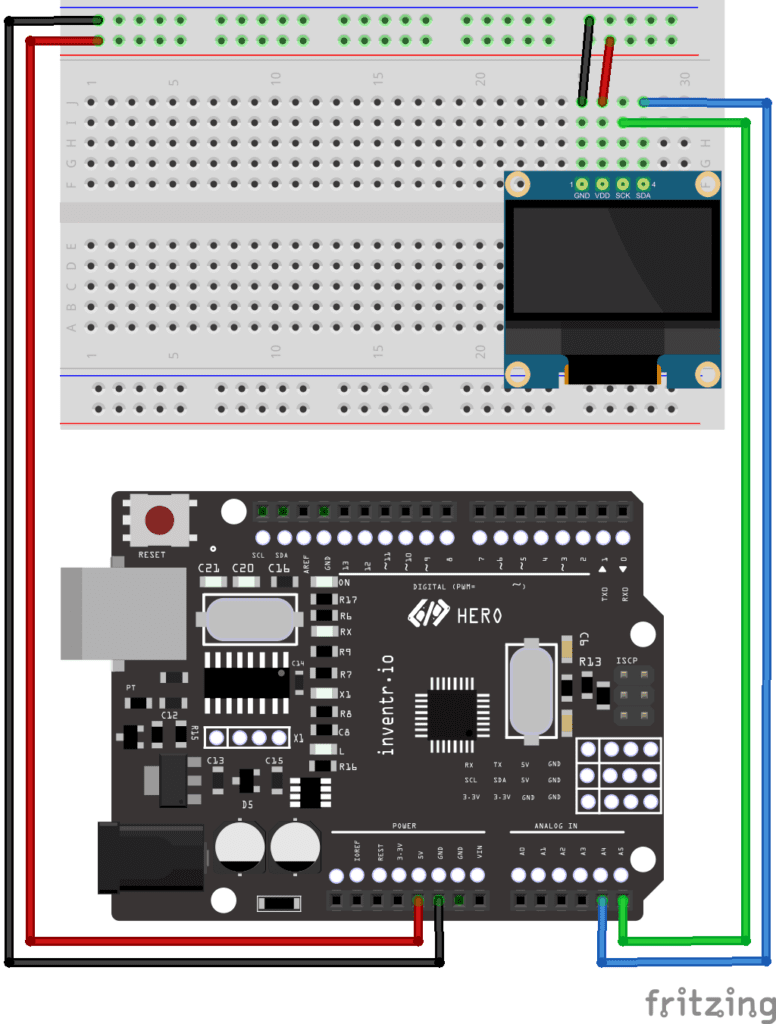

OLED Display Wiring Diagram

Program Architecture Overview

Your diagnostic program orchestrates a continuous demonstration of twelve different graphical capabilities. Like a master conductor directing an orchestra, it coordinates timing, sequencing, and visual effects to showcase your display's full potential.
