Chapter 5: Launch Panel

Day 21: Hello New World

Video lesson · 40 min

You've reached the surface of the alien planet. Now you need a navigation display. Wire an OLED screen and learn to render graphics — text, shapes, and status readouts on a pixel display. Master I2C communication and the SSD1306 display protocol.

Mission Status: Critical Display System Activation

The control panel flickers with amber warnings. Your fingers trace the cold metal surface where the primary navigation display should be, but there's nothing—just empty mounting brackets and a tangle of disconnected wires. Through the porthole, the alien planet's surface stretches endlessly, its twin suns casting harsh shadows across crystalline formations that could be mountains or ancient structures. You can't tell from here.

Command's voice crackles through the damaged communicator: "Explorer, we're detecting massive atmospheric interference. The simple four-digit readouts won't be enough for navigation calculations through this electromagnetic storm. You need full display capability for the return trajectory data."

Your repair kit contains salvation—a compact OLED display salvaged from the emergency systems. This isn't just about seeing "Hello World" on a screen. This display will become your window to survival data: fuel levels, atmospheric composition, navigation coordinates, structural integrity reports. Everything you need to punch through this planet's atmosphere and make it home.

The display contains 8,128 individual LEDs arranged in a precise 128x64 grid. Each pixel represents a potential lifeline, but connecting thousands of individual wires would be impossible. Fortunately, the engineers who designed this system were clever. They created a communication protocol—I2C—that lets two simple wires carry complex instructions to light up exactly the pixels you need.

What You'll Learn

When you complete this lesson, you'll be able to:

  • Connect an OLED display using the I2C communication protocol
  • Install and work with the U8g2 graphics library
  • Display text at specific positions on a graphical screen
  • Control font selection and text positioning
  • Create blinking text effects using display buffers
  • Center text both horizontally and vertically on screen

Understanding OLED Displays

Think of your OLED display like a digital billboard made of thousands of tiny light switches. Each pixel is an individual LED that can turn on or off independently. Unlike the billboard on the highway that needs someone to physically change each bulb, your OLED can change any pixel instantly through electronic signals.

The magic happens through a communication protocol called I2C (Inter-Integrated Circuit), pronounced "eye-squared-see." This protocol works like a postal system between your microcontroller and the display. Instead of needing 8,128 individual wires (one for each pixel), I2C uses just two communication wires plus power and ground.

One wire (SDA - Serial Data) carries the actual information—which pixels to turn on, what text to display, where to position it. The other wire (SCL - Serial Clock) acts like a metronome, keeping the data transmission synchronized. Think of it like a drummer keeping a band in rhythm, but instead of musicians, it's keeping data bits marching in perfect timing.

This coordinated communication lets your microcontroller send complex instructions like "display the word 'Hello' starting at pixel coordinate 64,32 using font size 12" all through those two simple wires. The display's built-in controller chip receives these instructions and translates them into the precise pixel patterns you see on screen.

Wiring Your OLED Display

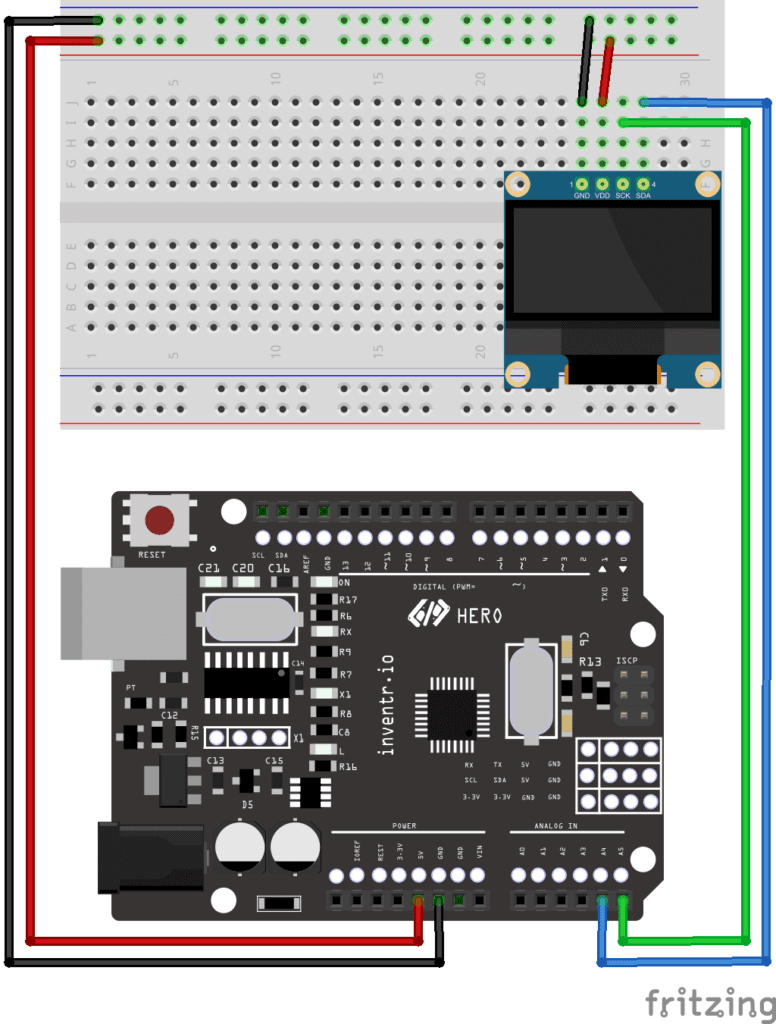

OLED display wiring diagram
  1. GND to Ground: Completes the electrical circuit. Every device needs a common reference point for voltage measurements.
  2. VCC to 5V: Powers the display's LEDs and control circuits. The display draws very little current compared to motors or bright LEDs.
  3. SDA to A4: Serial Data line. This carries all the actual information (what to display, where to put it, which font to use). Pin A4 is hardwired for I2C data on the HERO board.
  4. SCL to A5: Serial Clock line. This synchronizes the data transmission so bits don't get scrambled. Pin A5 is hardwired for I2C clock on the HERO board.
Connection Tip

Make sure your connections are solid. I2C communication is sensitive to loose wires because timing matters. A intermittent connection can cause garbled display output or no display at all.

Installing the U8g2 Library

Before your microcontroller can talk to the OLED display, it needs to learn the language. The U8g2 library contains all the translation functions needed to convert simple commands like "display text" into the complex I2C signals the display understands.

Download and Install Process:

  1. Navigate to inventr.io/libraries
