Chapter 4: Surface Return

Day 16: A fancy new display

Video lesson · 30 min

The pressure gauge is in the red zone. You need a depth display for your ascent to the surface. Wire a 7-segment display to show numbers and build a depth counter. Learn how individual LED segments form digits and characters.

The Clock Counts Down

The pressure gauge needle quivers in the red zone. Your spacecraft groans against the crushing weight of the deep ocean, metal plates flexing like the ribs of some massive sleeping beast. Through the porthole, bioluminescent creatures drift past in the eternal darkness, their alien glow the only light in this watery abyss.

Mission Control's voice crackles through the static: "Explorer, we've calculated your ascent window. You have exactly one shot at this. Rise too fast, and the pressure differential will turn your spacecraft into confetti. Rise too slow, and you'll run out of power before you breach the surface."

The plan is surgical precision disguised as controlled chaos. You need maximum power generation, which means timing your ascent for solar peak—high noon, when your panels drink in every photon. But without a way to track time in this lightless void, you're flying blind. The ship's chronometer was damaged in the crash, leaving you with spare parts and desperation.

Your fingers trace the small rectangular component in your kit—a 7-segment display. Seven simple LED segments arranged like a digital "8". Crude, perhaps, but in this moment, those glowing segments represent the difference between a triumphant return and becoming another cautionary tale in the deep.

Time to build a clock. Time to plot your escape. Time to prove that human ingenuity can triumph over the crushing darkness of the deep.

What You'll Learn

When you complete this mission, you'll be able to:

  • Control individual segments of a 7-segment display to create numbers and letters
  • Use the TM1637 library to simplify display operations
  • Understand binary notation and bitwise OR operations
  • Wire a display module using CLK and DIO communication pins
  • Create custom characters by combining LED segments
  • Build a foundation for time-keeping and numerical feedback systems

This isn't just about making numbers glow. You're mastering the art of visual communication between human and machine, one segment at a time.

Understanding 7-Segment Displays

Picture the last time you glanced at a digital alarm clock. Those blocky red numbers staring back at you? That's a 7-segment display in action. Each digit is built from seven individual LED strips arranged in a figure-eight pattern, labeled A through G.

Think of it like building letters with LEGOs, but you only get seven specific pieces to work with. Want to make an "8"? Light up all seven segments. Need a "0"? Turn off the middle segment (G) and keep the rest glowing. Creating a "7"? Just the top and right side segments will do.

This isn't just clever engineering—it's brilliant minimalism. With only seven segments, you can display all ten digits plus a surprising variety of letters. The letter "A" lights up segments A, B, C, E, F, and G, creating a recognizable character despite the constraints.

The magic happens when your microcontroller sends specific patterns of on/off commands to each segment. It's like conducting an orchestra where each musician either plays their note or stays silent. No complex graphics, no fancy animations—just the perfect choreography of light and darkness creating meaningful information.

Your TM1637 display module takes this concept and amplifies it with four digits side by side. Suddenly you're not just showing single numbers—you're displaying time, counters, temperatures, or even simple messages like "donE" to signal mission completion.

Wiring Your Display

Four wires. That's all it takes to bring your display to life. The TM1637 module uses a clever communication protocol that reduces wire clutter while maintaining reliable data transfer.

  1. VCC to 5V: Powers the display's internal circuitry and LED segments. Without adequate power, segments will appear dim or flicker.
  2. GND to Ground: Completes the electrical circuit. Always connect ground first to establish a common reference point.
  3. CLK to Pin 6: The clock pin synchronizes data transmission. Think of it as a metronome keeping the data bits in perfect timing.
  4. DIO to Pin 5: Data Input/Output carries the actual segment information. This pin tells each segment whether to light up or stay dark.

The CLK and DIO pins work together in a dance of digital communication. The clock pin marks each data bit's timing while DIO carries the actual segment commands. It's like Morse code but at thousands of pulses per second.

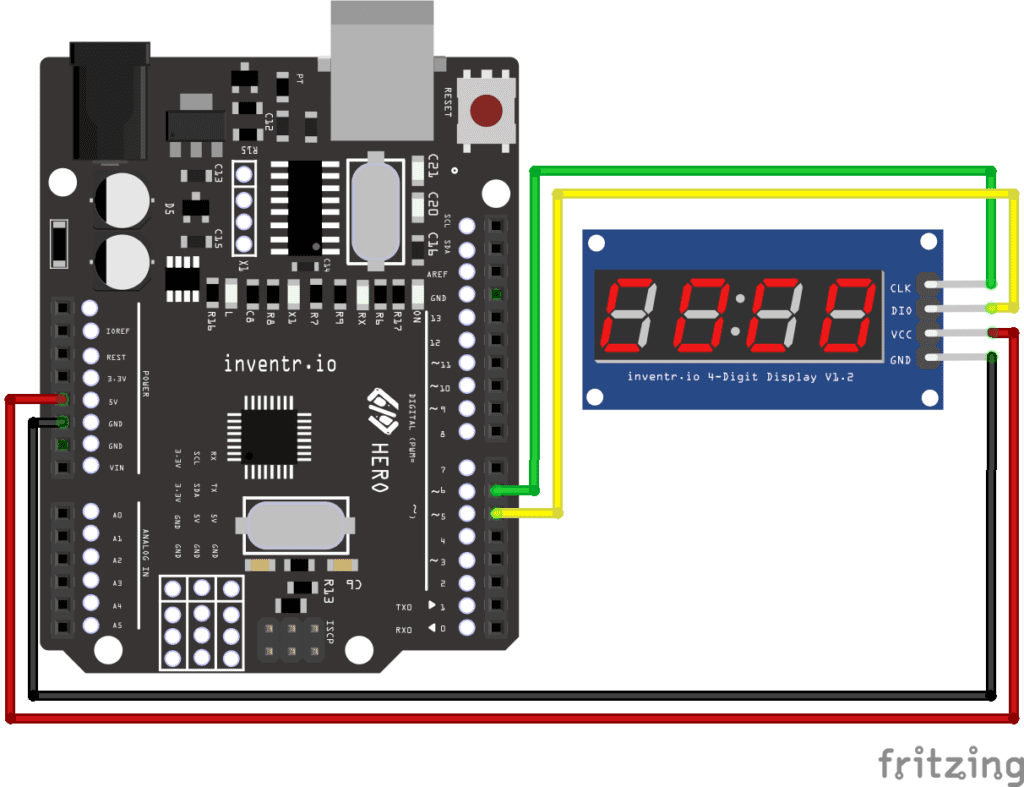

TM1637 7-segment display wiring diagram

Installing the TM1637 Library
